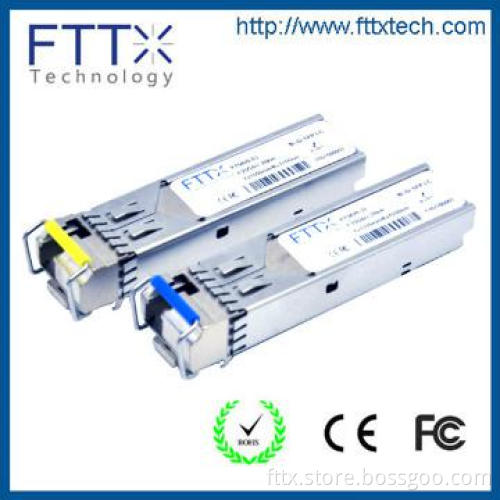

1.25G SC/LC BIDI SFP 1000BASE-BX-U 20km 1310Tx1490Rx

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Wavelength	1310nm
Distance	20km
Work Temperature	0~70℃

Detail Description

Application:
ØGigabit Ethernet
ØFiber Channel
ØWDM Application

Key Feature:
ØSingle Mode bi-directional Transmission
ØSFP Multi-source Package with LC Receptacle
ØUp to 1.25Gb/s Data Links
ØHot-Pluggable Capability
ØUp to 20 km on 9/125μm SMF
ØSingle +3.3V Power Supply
ØBuilt-in WDM
ØIsolation > 30dB, Cross Talk < -45dB
ØMetal Enclosure, Excellent EMI & ESD Protection
ØCompliant with Specifications for IEEE802.3Z
ØCompliant with Bellcore TA-NWT-000983
ØEye Safety Designed to Meet Laser Class1, Compliant with IEC60825-1
ØRoHS Compliant

Order Information:

Part Number	Wavelength	Distance	Source	Output Power	Sensitivity	DOM	Operation Temp Range	Voltage
FT5420-34	1310Tx/1490Rx	20km	FP	-9 ~-3dBm	≦-23.0dBm	Yes	0~70℃	3.3V
FT4420-34	1310Tx/1490Rx	20km	FP	-9 ~-3dBm	≦-23.0dBm	Yes	0~70℃	3.3V

Additional Information

Payment Terms	T/T, Western Union, Paypal
Minimum Order	1
Lead Time / Delivery Time	5 Day(s)
Sample Available	YES
FOB Port	Hong Kong,Shenzhen
Target Market(s)	Africa(except Middle East), Eastern Europe, North America, Central & Southern Asia, Southeast Asia
