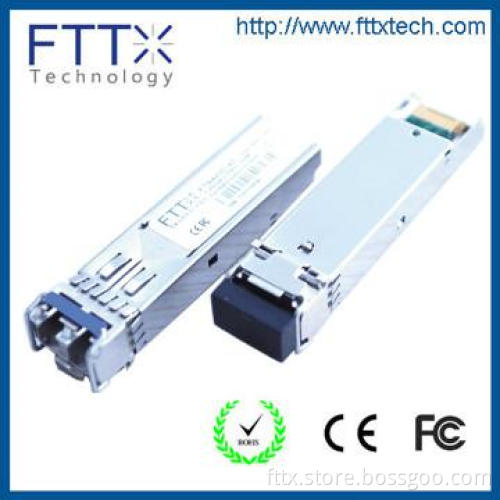

155M 2 Channel BIDI CSFP 100BASE-2BX-U 20km 1310Tx/1550Rx

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Detail Description

FTS220D-35 IS 2 single fiber duplex transmissions in current SFP form factor. There it could double the port density of current equipment or line card. This module is designed for Single-Mode single fiber, operates at the normal wavelength of 1310/1550nm.Standard AC coupled CML for high speed signal and LVTTL control and monitor signals.
Application:
ØFast Ethernet
ØSwitch to Switch Interface
ØWDM Application

Key Feature:
ØTwo Bi-Directional Transceivers in One SFP Package
ØCompliant with CSFP MSA 2.0 (Option 2)
ØUp to 155Mb/s Data Links
ØHot-Pluggable Capability
ØUp to 20 km on 9/125μm SMF
ØSingle +3.3V Power Supply
ØBuilt-in Filter WDM
ØMonitoring Interface Compliant with SFF-8472
ØIsolation > 30dB, Cross Talk < -45dB
ØMetal Enclosure, Excellent EMI & ESD Protection
ØCompliant with Specifications for IEEE802.3ah
ØCompliant with Bellcore TA-NWT-000983
ØEye Safety Designed to Meet Laser Class1, Compliant with IEC60825-1
ØOperating temperature range: 0°C to 70°C
ØRoHS Compliant

Order Information:

Part Number	Wavelength	Distance	Source	Output Power	Sensitivity	DOM	Operation Temp Range	Voltage
FTS220D-35	1310Tx/1550Rx	20km	FP	-15 ~-8dBm	≦-33.0dBm	Yes	0~70℃	3.3V

Additional Information

Payment Terms	T/T, Western Union, Paypal
Minimum Order	1
Sample Available	YES
FOB Port	Hong Kong,Shenzhen
Target Market(s)	Africa(except Middle East), Hong Kong/ Macao/ Taiwan, North America, Southeast Asia, Western & Southern Europe
