6.144G BIDI SFP 20km 1330Tx/1270Rx
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Wavelength | 1310nm |
|---|---|
| Connector | LC |
| Distance | 20km |
| Work Temperature | 0~70℃ |
Detail Description

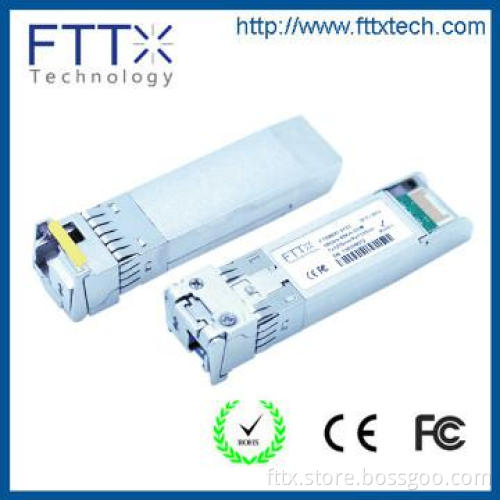

The FT5B10D-3327 is a high performance, cost effective modules for serial optical data communications such as CPRI and OBSAI. which is supporting multi rate up to 6.144Gbps, and transmission distance up to 20km on SM fiber. It consists of two sections: The transmitter section incorporates a 1330nm DFB driver and re-timer.
Application:
Ø High-speed storage area networks
Ø Computer cluster cross-connect
Ø Custom high-speed data pipes
Ø Inter rack connection
Key Feature:
Ø Up to 6.144 Gb/s bi-directional data links
Ø Electrical interface compliant to SFF-8431 specifications for small form factor pluggable module “SFP+”
Ø 1330nm DFB Laser transmitter,1270nm receiver
Ø 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical transceivers
Ø Operating case temperature: 0 to 70°C
Ø All-metal housing for superior EMI performance
Ø Low power consumption
Ø Advanced firmware allow customer system encryption information to be stored in transceiver
Ø Cost effective SFP+ solution, enables higher port densities and greater bandwidth
Ø RoHS compliant
Order Information:
Application:
Ø High-speed storage area networks
Ø Computer cluster cross-connect
Ø Custom high-speed data pipes
Ø Inter rack connection
Key Feature:
Ø Up to 6.144 Gb/s bi-directional data links
Ø Electrical interface compliant to SFF-8431 specifications for small form factor pluggable module “SFP+”
Ø 1330nm DFB Laser transmitter,1270nm receiver
Ø 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical transceivers
Ø Operating case temperature: 0 to 70°C
Ø All-metal housing for superior EMI performance
Ø Low power consumption
Ø Advanced firmware allow customer system encryption information to be stored in transceiver
Ø Cost effective SFP+ solution, enables higher port densities and greater bandwidth
Ø RoHS compliant
Order Information:
| Part Number | Wavelength | Distance | Source | Output Power | Sensitivity | DOM | Operation Temp Range | Voltage |
| FT5B10D-3327 | 1330nm | 20km | DFB | -3~+1dBm | ≦-14.1dBm | Yes | 0~70℃ | 3.3V |
Additional Information
| Payment Terms | T/T, Western Union, Paypal |
|---|---|
| Minimum Order | 2 |
| Lead Time / Delivery Time | 9 Day(s) |
| Sample Available | YES |
| FOB Port | Hong Kong,Shenzhen |
| Target Market(s) | Africa(except Middle East), North America, Northern Europe, Southeast Asia, Western & Southern Europe |
