8G FC DWDM SFP+ 40km 100Ghz CH17~61 Transceiver

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Wavelength	ITU DWDM 100Ghz
Distance	40km
Wavelength	Other
Connector	LC
Work Temperature	-5~+85℃

Detail Description

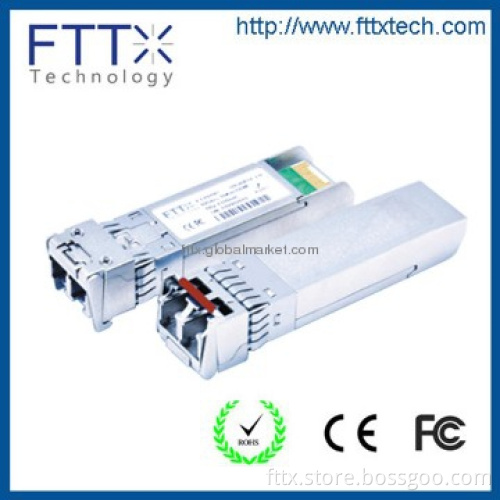

FT3840D-Dxx Transceiver is a high performance, cost effective module which have a Duplex LC optics interface. Standard AC coupled CML for high speed signal and LVTTL control and monitor signals. The receiver section uses a PIN receiver and the transmitter uses DWDM laser. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFF-8472.

Application:
Ø         2x/4x/8x FC
Ø         Wireless – CPRI
Ø         Wireless – OBSAI

Key Feature:
Ø         Hot-pluggable SFP+ footprint
Ø         Multi Rate up to 8.5Gb/s Data Link
Ø         DWDM Laser and PIN receiver
Ø         Up to 40km on 9/125μm SMF
Ø         Duplex LC Connector
Ø         Monitoring Interface Compliant with SFF-8472
Ø         Low Power Dissipation <1W Typically
Ø         Very low EMI and Excellent ESD Protection
Ø         +3.3V Single Power Supply
Ø         Operating Case Temperature: -5~+85°C
Ø         RoHS-6 Compliant and Lead Free

Order Information:

Part Number	Wavelength	Source	Output Power	Sensitivity	DOM	Operation Temp Range	Voltage
FT3840D-Dxx	ITU DWDM 100Ghz	DWDM LD	-4.7~+4dBm	≦-14.1dBm	Yes	-5~+85℃	3.3V

Additional Information

Payment Terms	T/T, Western Union
Minimum Order	1
Lead Time / Delivery Time	3 Day(s)
Sample Available	NO
FOB Port	Shenzhen
Packing Info	Neutral Package 10pcs/Box
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
