8G FC SFP+ SW 850nm 150m transceiver
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Wavelength | 850nm |
|---|---|
| Wavelength | Other |
| Connector | LC |
| Distance | 150m |
| Work Temperature | -5~85℃ |
Detail Description

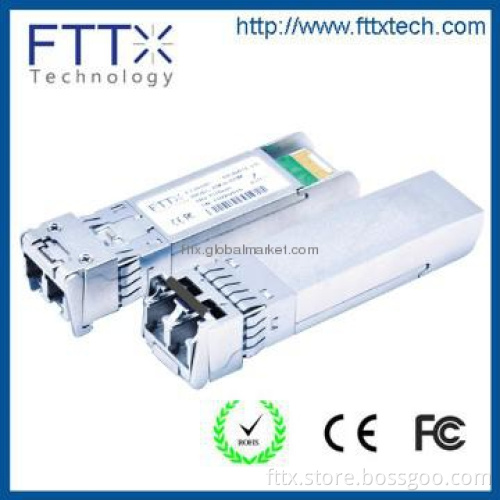

FT3805D Transceiver is a high performance, cost effective module which have a Duplex LC optics interface. Standard AC coupled CML for high speed signal and LVTTL control and monitor signals. The receiver section uses a PIN receiver and the transmitter uses 850 nm Vcsel laser. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFF-8472.
Application:
Ø 2x/4x/8x FC
Ø Wireless – CPRI
Ø Wireless – OBSAI
Key Feature:
Ø Hot-pluggable SFP+ footprint
Ø Multi Rate up to 8.5Gb/s Data Link
Ø 850nm Vcsel Laser and PIN receiver
Ø Up to 500m on 50/125μm MMF
Ø 150m on high-bandwidth 50/125um (OM3) MMF
Ø Duplex LC Connector
Ø Monitoring Interface Compliant with SFF-8472
Ø Low Power Dissipation <500mW Typically
Ø Very low EMI and Excellent ESD Protection
Ø +3.3V Single Power Supply
Ø Operating Case Temperature: -5~+85°C
Ø RoHS-6 Compliant and Lead Free
Order Information:
Application:
Ø 2x/4x/8x FC
Ø Wireless – CPRI
Ø Wireless – OBSAI
Key Feature:
Ø Hot-pluggable SFP+ footprint
Ø Multi Rate up to 8.5Gb/s Data Link
Ø 850nm Vcsel Laser and PIN receiver
Ø Up to 500m on 50/125μm MMF
Ø 150m on high-bandwidth 50/125um (OM3) MMF
Ø Duplex LC Connector
Ø Monitoring Interface Compliant with SFF-8472
Ø Low Power Dissipation <500mW Typically
Ø Very low EMI and Excellent ESD Protection
Ø +3.3V Single Power Supply
Ø Operating Case Temperature: -5~+85°C
Ø RoHS-6 Compliant and Lead Free
Order Information:
| Part Number | Wavelength | Source | Output Power | Sensitivity | DOM | Operation Temp Range | Voltage |
| FT3805D | 850nm | Vcsel | -8.2 ~-2dBm | ≦-18.0dBm | Yes | -5~85℃ | 3.3V |
Additional Information
| Payment Terms | T/T, Western Union, Paypal |
|---|---|
| Minimum Order | 1 |
| Lead Time / Delivery Time | 3 Day(s) |
| Sample Available | NO |
| FOB Port | Shenzhen |
| Packing Info | Neutral Package 10pcs/Box |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
