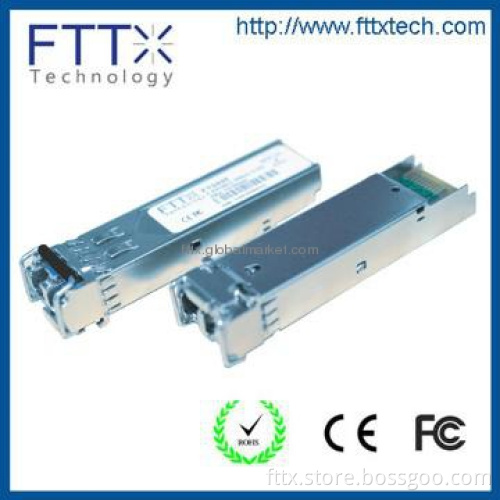

4G FC SFP SW 850nm 150m fiber optic

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Wavelength	Other
Connector	LC
Distance	150m
Work Temperature	0~70℃

Detail Description

Application:
Ø         Tri-Rate 1.0625 / 2.125 / 4.25Gb/s Fiber Channel
Key Feature:
Ø         Up to 4.25 Gb/s bi-directional data links
Ø         Hot-Pluggable SFP Footprint LC Optical Transceiver
Ø         Digital Diagnostic Monitor Interface Compatible with SFF-8472
Ø         850nm Oxide VCSEL laser transmitter
Ø         Duplex LC Connector
Ø         Single +3.3V Power Supply
Ø         Up to 150m on 50/125μm MMF at 4.25Gb/s
Ø         Up to 70m on 62.5/125μm MMF at 4.25Gb/s
Ø         Operating temperature range: 0°C to 70°C
Ø         RoHS Compliant Products

Order Information:

Part Number	Wavelength	Source	Output Power	Sensitivity	DOM	Operation Temp Range	Voltage
FT3701D	850nm	VCSEL	-9 ~-3dBm	≦-16.0dBm	Yes	0~70℃	3.3V

Additional Information

Payment Terms	T/T, Western Union
Minimum Order	1
Lead Time / Delivery Time	3 Day(s)
Sample Available	NO
FOB Port	Shenzhen
Packing Info	Neutral Package 10pcs/Box
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
