4G FC DWDM SFP 40km 100Ghz CH17~61

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Distance	40km
Wavelength	850nm--1610NM
Connector	LC
Work Temperature	-5~70℃

Detail Description

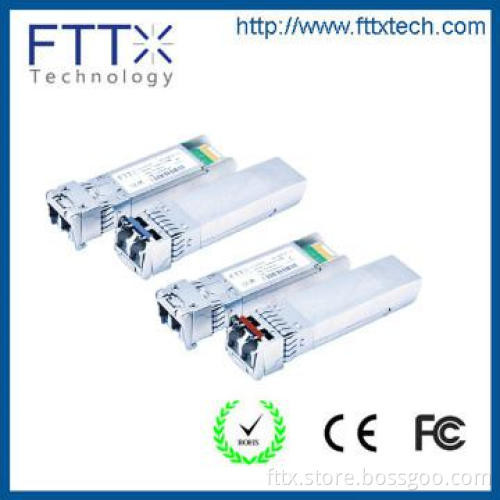

FT3740D-Dxx Transceiver is a high performance, cost effective module which have a Duplex LC optics interface. Standard AC coupled CML for high speed signal and LVTTL control and monitor signals. The receiver section uses a PIN receiver and the transmitter uses DWDM DFB laser, which ensure this module can work on 4.25Gb/s 40Km application.
Application:
Ø1x/2x FC
ØGigabyte Ethernet
ØAmplified DWDM & SONET networks
Key Feature:
ØHot-Pluggable
ØMulti Rate up to 4.25Gb/s Data Link
ØCooled DWDM DFB Laser and PIN receiver
ØUp to 40km on 9/125um SMF
ØSFP MSA Package with Duplex LC Connector
ØMonitoring Interface Compliant with SFF-8472
ØSuitable for use in 100GHz channel spacing DWDM systems
Ø+3.3V Single Power Supply
ØWavelength controlled within ± 0.1nm over life and temperature
ØOperating Case Temperature: 0~+70°C
ØDesigned to meet Laser Class1 Compliant with IEC60825-1
ØRoHS-6 Compliant and Lead Free
Order Information:

Part Number	Wavelength	Source	Output Power	Sensitivity	DOM	Operation Temp Range	Voltage
FT3740D-Dxx	ITU DWDM 100Ghz	DWDM	0~+5dBm	≦-18.0dBm	Yes	-5~70℃	3.3V

Additional Information

Payment Terms	T/T, Western Union, Paypal
Minimum Order	2
Lead Time / Delivery Time	5 Day(s)
Sample Available	YES
FOB Port	Hong Kong,Shenzhen
Target Market(s)	Africa(except Middle East), North America, Central & Southern Asia, Southeast Asia, Western & Southern Europe
