40G QSFP+ to 4x10G SFP+ Passive Cable 3M
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Form Factor | QSFP+&SFP+ |
|---|---|
| Distance | 3m |
| Work Temperature | 0~70℃ |
Detail Description

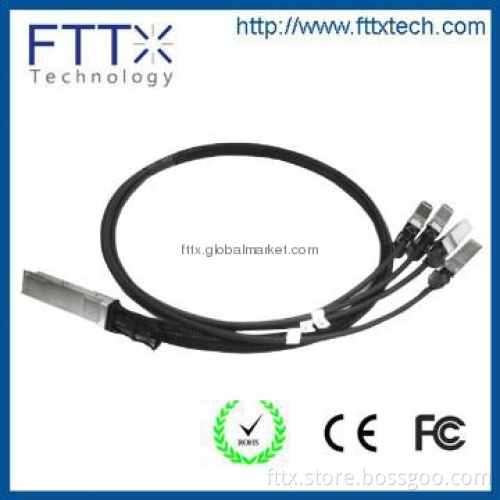

The FTQCT3-4 QSFP+ to 4x SFP+ Passive cable assemblies are high performance, cost effective for SFP+ and QSFP+ equipment interconnects . The Hybrid cables are compliant with SFF-8436 and SFF-8431 specifications. It is offer a low power consumption，short reach interconnect applications. The cable each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 40Gb/s.
Application:
Ø 10G/40Gigabit Ethernet
Ø InfiniBand SDR, DDR, QDR
Ø Switches, Routers, and HBAs
Ø Data Centers
Key Feature:
Ø High-Density QSFP+ 38-PIN and 4x SFP+ 20-PIN Connector
Ø Hybrid cable conforms to the Small Form Factor SFF-8436 and SFF-8431
Ø Maximum aggregate data rate: 41.25 Gbps (4 x 10.3125Gbit/s)
Ø Hybrid cable link length up to 3m
Ø Power Supply :+3.3V
Ø Low power consumption: 0.02 W (typ.)
Ø Temperature Range: 0~ 70 °C
Order Information:
Arial; mso-font-kerning:0pt\'>-12dBm
Yes
0~70℃
3.3V
0pt; mso-border-bottom-alt:solid windowtext .5pt;mso-border-right-alt:solid windowtext .5pt; padding:0cm 5.4pt 0cm 5.4pt;height:15.0pt\'>0~70℃
3.3V
Application:
Ø 10G/40Gigabit Ethernet
Ø InfiniBand SDR, DDR, QDR
Ø Switches, Routers, and HBAs
Ø Data Centers
Key Feature:
Ø High-Density QSFP+ 38-PIN and 4x SFP+ 20-PIN Connector
Ø Hybrid cable conforms to the Small Form Factor SFF-8436 and SFF-8431
Ø Maximum aggregate data rate: 41.25 Gbps (4 x 10.3125Gbit/s)
Ø Hybrid cable link length up to 3m
Ø Power Supply :+3.3V
Ø Low power consumption: 0.02 W (typ.)
Ø Temperature Range: 0~ 70 °C
Order Information:
| Part Number | Wavelength | Source | Output Power | Sensitivity | DOM | Operation Temp Range | Voltage |
| FTQCT3-4 | Yes | 0~70℃ | 3.3V |
Yes
0~70℃
3.3V
0pt; mso-border-bottom-alt:solid windowtext .5pt;mso-border-right-alt:solid windowtext .5pt; padding:0cm 5.4pt 0cm 5.4pt;height:15.0pt\'>0~70℃
3.3V
Additional Information
| Payment Terms | T/T, Western Union |
|---|---|
| Minimum Order | 10 |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | NO |
| Delivery Details | 7 |
| Loading Info | dhl |
| Packing Info | standard |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
