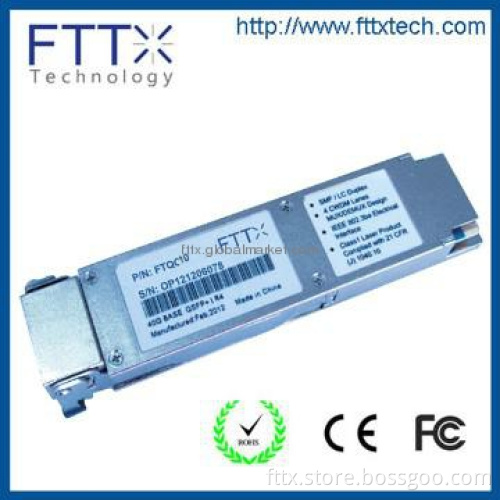

40G QSFP+ SR4 100m Fiber Optic Transceiver

The FTQC01 is a parallel 40Gbps Quad Small Form-factor Pluggable (QSFP+) optical module that provides increased port density and total system cost savings. The QSFP+ full-duplex optical module offers 4 independent transmit and receive channels, each capable of 10Gbps operation for an aggregate bandwidth of 40Gbps 100mon OM3 Multimode Fiber (MMF) and 150m on OM4 MMF.

Application:
Ø         Rack to rack
Ø         Data centers
Ø         Metro networks
Ø         Switches and Routers
Ø         Infiniband 4x SDR, DDR, QDR

Key Feature:
Ø         4 independent full-duplex channels
Ø         Up to 11.2Gbps per channel bandwidth
Ø         Aggregate bandwidth of > 40Gbps
Ø         MTP/MPO optical connector
Ø         QSFP+ MSA compliant
Ø         Digital diagnostic capabilities
Ø         Capable of over 100m transmission on OM3 Multimode Fiber (MMF)and 150m on OM4 MMF
Ø         CML compatible electrical I/O
Ø         Single +3.3V power supply operating
Ø         TX input and RX output CDR retiming
Ø         Built-in digital diagnostic functions
Ø         Temperature range 0°C to 70°C
Ø         RoHS Compliant Part

Order Information:

Part Number	Wavelength	Source	Output Power	Sensitivity	DOM	Operation Temp Range	Voltage
FTQC01	850nm	VCSEL	-8 ~ +1dBm	≦-12dBm	Yes	0~70℃	3.3V

0pt; mso-border-bottom-alt:solid windowtext .5pt;mso-border-right-alt:solid windowtext .5pt; padding:0cm 5.4pt 0cm 5.4pt;height:15.0pt\'>0~70℃
3.3V
