10G DWDM SFP+ 40km 100Ghz CH17~61

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Wavelength	ITU DWDM 100Ghz
Distance	40km
Wavelength	Other
Connector	LC
Work Temperature	0~70℃

Detail Description

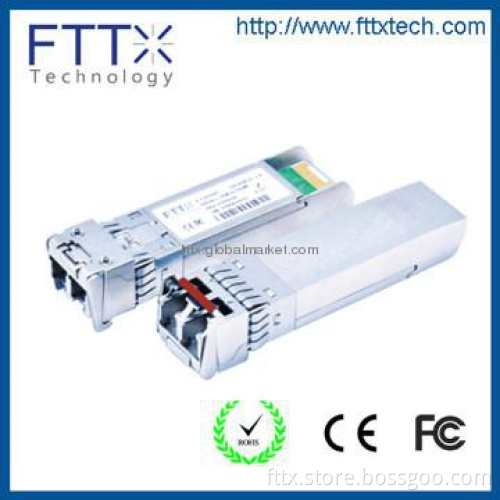

FT3940D-Dxx DWDM SFP+ ER transceiver is a very compact 10Gb/s optical transceiver module for serial optical communication applications, supporting data-rate of 10.3125Gbps (10GBASE-ER) or 9.953Gbps (10GBASE-EW), and transmission distance up to 40km on SMF. The transceiver consists of two sections: The high performance cooled DWDM 100G Grid EML Laser Transmitter and high sensitivity PIN integrated with a TIA receiver.

Application:

10G Base-ER/EW
10G Fiber Channel
CWDM Networks
Other optical links

Key Feature:

Hot pluggable
10Gb/s serial optical interface
ITU-T DWDM 100G Grid Cooled EML Laser and PIN receiver
Up to 40km on 9/125um SMF
SFP+ MSA package with duplex LC connector
2-wire interface for management and diagnostic monitor
SFI High Speed Electrical Interface
Very low EMI and excellent ESD protection
+3.3V single power supply
Power consumption less than 1.5W
Operating case temperature: -5~+70°C

Order Information:

Part Number	Wavelength	Source	Output Power	Sensitivity	DOM	Operation Temp Range	Voltage
FT3940D-Dxx	ITU DWDM 100Ghz	DWDMEML	-1～+4dBm	≤-16dBm	Yes	0~70℃	3.3V

Additional Information

Payment Terms	T/T, Western Union
Minimum Order	1
Lead Time / Delivery Time	3 Day(s)
Sample Available	NO
Delivery Details	1-3 days
FOB Port	Shenzhen
Packing Info	Neutral package 10pcs/ box
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
