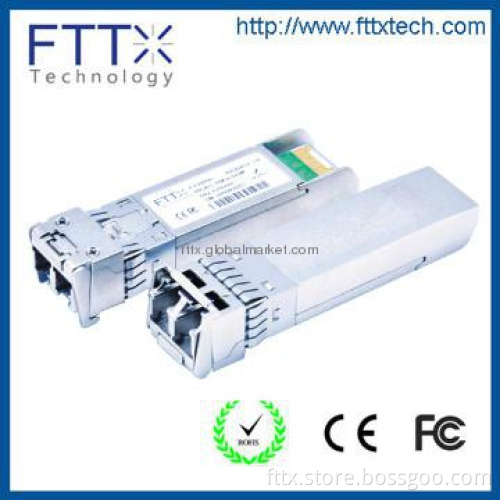

10G CWDM SFP+ 80km 1470~1610nm sfp

FT3980D-xx CWDM SFP+ ZR transceiver is a very compact 10Gb/s optical transceiver module for serial optical communication applications, supporting data-rate of 10.3125Gbps (10GBASE-ZR) or 9.953Gbps (10GBASE-ZW), and transmission distance up to 80km on SMF. The transceiver consists of two sections: The high performance cooled CWDM EML Laser Transmitter and high sensitivity APD integrated with a TIA receiver.

Application:

• 10G Base-ZR/ZW
• 10G Fiber Channel
• CWDM Networks
• Other optical links


Key Feature:

• Hot pluggable
• 10Gb/s serial optical interface
• 1470~1610nm CWDM Cooled EML Laser and APD Receiver
• Up to 80km on 9/125um SMF
• SFP+ MSA package with Duplex LC Connector
• 2-wire interface for management and diagnostic monitor
• SFI High Speed Electrical Interface
• Very low EMI and excellent ESD protection
• +3.3V single power supply
• Power consumption less than 2W
• Operating case temperature: -5~+70°C


Order Information:

Part Number	Wavelength	Source	Output Power	Sensitivity	DOM	Operation Temp Range	Voltage
FT3980D-xx	1470~1610nm	CWDM EML+APD	0 ~ +4dBm	≦-23.0dBm	Yes	0~70℃	3.3V
