10G CWDM SFP+ 60km 1270~1610nm Optical Transceiver

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Wavelength	1270~1450nm
Distance	60km
Wavelength	Other
Connector	LC
Work Temperature	0~70℃

Detail Description

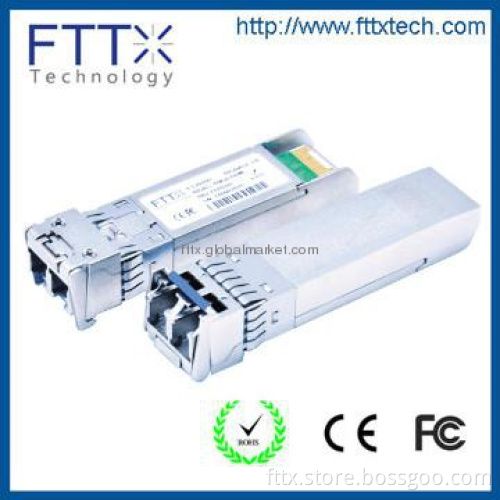

FTTX FT3960D-xx SFP+ CWDM transceiver is a very compact 10Gb/s optical transceiver module for serial optical communication applications, supporting data-rate of 10.3125Gbps (10GBASE-ER) or 9.953Gbps (10GBASE-EW), and transmission distance up to 60km on SMF. The transceiver consists of two sections: The high performance CWDM DFB Laser Transmitter and high sensitivity PIN integrated with a TIA receiver.

Application:

10G Base-ER/EW
10G Fiber Channel
CWDM Networks
Other optical links

Key Feature:

Hot pluggable
10Gb/s serial optical interface
1270~1450nm CWDM Cooled EML Laser and PIN receiver
Up to 60km on 9/125um SMF
SFP+ MSA package with duplex LC connector
2-wire interface for management and diagnostic monitor
SFI High Speed Electrical Interface
Very low EMI and excellent ESD protection
+3.3V single power supply
Power consumption less than 1.5W
Operating case temperature: -5~+70°C

Order Information:

Part Number	Wavelength	Source	Output Power	Sensitivity	DOM	Operation Temp Range	Voltage
FT3960D-xx	1270~1450nm	CWDM DFB	0～+5dBm	≤-20.0dBm	Yes	0~70℃	3.3V

Additional Information

Payment Terms	T/T, Western Union
Minimum Order	1
Lead Time / Delivery Time	3 Day(s)
Sample Available	NO
Delivery Details	1~3 business days
FOB Port	Shenzhen
Packing Info	Neutral package 10pcs/ box
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
