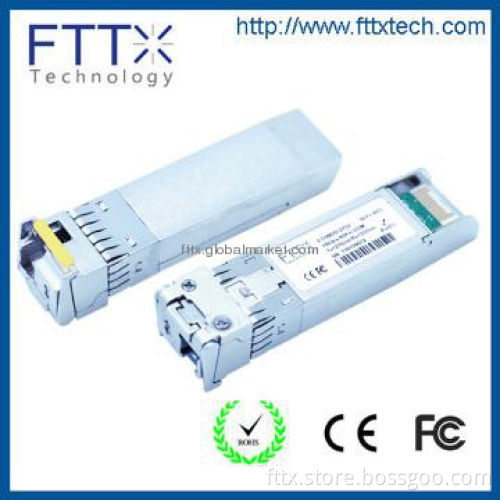

10G BIDI SFP+ 60km 1330Tx1270Rx Transceiver

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Wavelength	1330Tx/1270Rx
Distance	60km
Connector	LC
Work Temperature	0~70℃

Detail Description

FTTX’ FT5960D-3327 Bi-directional 10Gb/s (SFP+) transceivers are compliant with the current SFP+ Multi-Source Agreement (MSA) Specification. They comply with 10GBASE-ER/EW Ethernet and 10G Fiber Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the SFP+ MSA.

Application:

10GBASE-ER/EW 10G Ethernet
1200-SM-LL-L 10G Fiber Channel

Key Feature:

Supports 9.95Gb/s to 11.3Gb/s bit rates
Hot-pluggable SFP+ footprint
Single LC for Bi-directional Transmission
Maximum link length of 60km
Built-in 1330/1270 WDM
Uncooled 1270nm or 1330nm CWDM DFB Laser.
APD Receiver
Power dissipation <1.5W
No Reference Clock required
Built-in digital diagnostic functions
Temperature range 0°C to 70°C
Very low EMI and excellent ESD protection
RoHS Compliant Part

Order Information:

Part Number	Wavelength	Source	Output Power	Sensitivity	DOM	Operation Temp Range	Voltage
FT5960D-3327	1330Tx/1270Rx	CWDM DFB	0～+5dBm	≤-20.0dBm	Yes	0~70℃	3.3V

Additional Information

Payment Terms	T/T, Western Union
Minimum Order	1
Lead Time / Delivery Time	3 Day(s)
Sample Available	NO
Delivery Details	.fast delivery
FOB Port	Shenzhen
Loading Info	dhl
Packing Info	Neutral package 10pcs/ box
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
