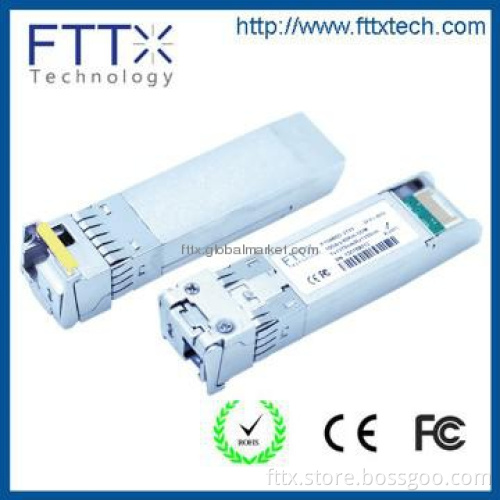

10G BIDI SFP+ 40km 1330Tx1270Rx Fiber Optic
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Data Rate | 10G |
|---|---|
| Distance | 40km |
| Wavelength | Other |
| Connector | LC |
| Work Temperature | 0~70℃ |
Detail Description
FTTX’ FT5940D-3327 Bi-directional 10Gb/s (SFP+) transceivers are compliant with the current SFP+ Multi-Source Agreement (MSA) Specification. They comply with 10GBASE-ER/EW Ethernet and 10G Fiber Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the SFP+ MSA.
Application:
Ø 10GBASE-ER/EW 10G Ethernet
Ø 1200-SM-LL-L 10G Fiber Channel
Key Feature:
Ø Supports 9.95Gb/s to 10.3Gb/s bit rates
Ø Hot-pluggable SFP+ footprint
Ø Single LC for Bi-directional Transmission
Ø Maximum link length of 40km
Ø Built-in 1330/1270 WDM
Ø Uncooled 1270nm or 1330nm CWDM DFB Laser.
Ø Power dissipation <1.5W
Ø No Reference Clock required
Ø Built-in digital diagnostic functions
Ø Temperature range 0°C to 70°C
Ø Very low EMI and excellent ESD protection
Ø RoHS Compliant Part
Order Information:
font-family:Arial; mso-font-kerning:0pt\'>3.3V
Application:
Ø 10GBASE-ER/EW 10G Ethernet
Ø 1200-SM-LL-L 10G Fiber Channel
Key Feature:
Ø Supports 9.95Gb/s to 10.3Gb/s bit rates
Ø Hot-pluggable SFP+ footprint
Ø Single LC for Bi-directional Transmission
Ø Maximum link length of 40km
Ø Built-in 1330/1270 WDM
Ø Uncooled 1270nm or 1330nm CWDM DFB Laser.
Ø Power dissipation <1.5W
Ø No Reference Clock required
Ø Built-in digital diagnostic functions
Ø Temperature range 0°C to 70°C
Ø Very low EMI and excellent ESD protection
Ø RoHS Compliant Part
Order Information:
| Part Number | Wavelength | Source | Output Power | Sensitivity | DOM | Operation Temp Range | Voltage |
| FT5940D-3327 | 1330Tx/1270Rx | CWDM DFB | 0～+5dBm | ≤-16.0dBm | Yes | 0~70℃ | 3.3V |
Additional Information
| Payment Terms | T/T, Western Union |
|---|---|
| Minimum Order | 1 |
| Lead Time / Delivery Time | 3 Day(s) |
| Sample Available | NO |
| Delivery Details | 3 days |
| FOB Port | Shenzhen |
| Loading Info | dhl |
| Packing Info | standard |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
