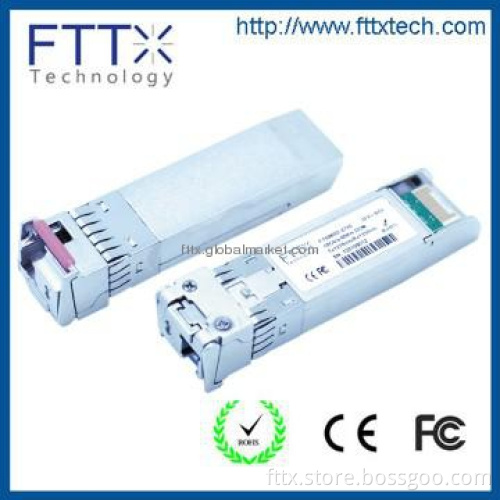

10G BIDI SFP+ 10km 1270Tx/1330Rx

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Fiber Type	SMF
Wavelength	Other
Connector	LC
Distance	10km
Work Temperature	0~70℃

Detail Description

FTTX’ FT5910D-2733 Bi-directional 10Gb/s (SFP+) transceivers are compliant with the current SFP+ Multi-Source Agreement (MSA) Specification. They comply with 10GBASE-LR/LW Ethernet and 10G Fiber Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the SFP+ MSA.

Application:
Ø         10GBASE-LR/LW 10G Ethernet
Ø         1200-SM-LL-L 10G Fiber Channel

Key Feature:
Ø         Supports 9.95Gb/s to 11.3Gb/s bit rates
Ø         Hot-pluggable SFP+ footprint
Ø         Single LC for Bi-directional Transmission
Ø         Maximum link length of 10km
Ø         Built-in 1270/1330 WDM Filter
Ø         Uncooled 1270nm or 1330nm DFB Laser.
Ø         Power dissipation <1.5W
Ø         No Reference Clock required
Ø         Built-in digital diagnostic functions
Ø         Temperature range 0°C to 70°C
Ø         Very low EMI and excellent ESD protection
Ø         RoHS Compliant Part

Order Information:

Part Number	Wavelength	Source	Output Power	Sensitivity	DOM	Operation Temp Range	Voltage
FT5910D-2733	1270Tx/1330Rx	CWDM DFB	-6 ~ -1dBm	≦-14.5dBm	Yes	0~70℃	3.3V

Additional Information

Payment Terms	T/T, Western Union
Minimum Order	10
Lead Time / Delivery Time	3 Day(s)
Sample Available	NO
Delivery Details	3 days
FOB Port	Shenzhen
Loading Info	dhl
Packing Info	standard
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
