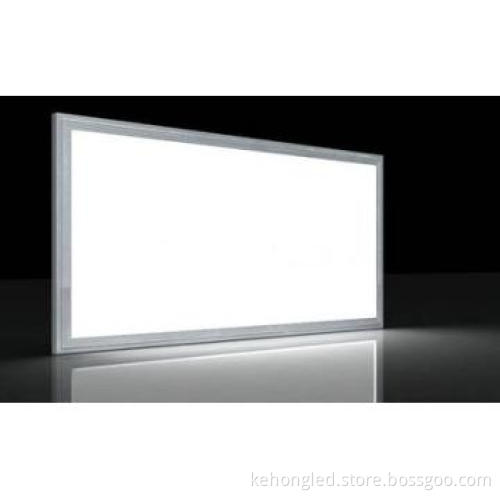

LED panel high bright ultra slim led panel light 1200X300x10mm SMD3014
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| led panel light | led ceiling light |
|---|---|
| led office lighting | led panel |
| Material | Acrylic, Aluminum, PMMA |
| Application | Airport, Church, Gallery, Hospital, Hotel, Meeting Room, Museum, Office, Restaurant, School, Shopping Mall |
| Light Source | LED |
| Voltage | 110V |
Detail Description
1 LED panel lights Features :
Ø Energy saving up to 50%. high intensity
Ø Life span: ≥50,000 hours
Ø Instant start, no flickering, no humming
Ø New inner high efficiency (85%) constant current driver, with heat protection system can work under unstable voltage
Ø Special circuit design, each LED work separately, avoiding the single broken LED influence problem
Ø Electric wave resistant .
Ø No fluorescent flickering
Ø No hazard of mercury or lead entering the environment
Ø No RF interference
2 LED panel lights applications:
l Hotels
l Conference / Meeting rooms
l Factories & Offices
l Commercial Complexes
l Residential / Institution Buildings
l Schools,
3. LED panel lights specifiction:
NUMBER |
ITEM |
DESCRIPTION |
01 |
Input Power |
AC 100-240v |
02 |
Output Power |
DC12/24v |
03 |
Output Current(max) |
0.45A |
04 |
Luminous Flux |
3200-3400LM |
05 |
Color |
White/warm white/Natural white/RGB |
06 |
Color Temperature |
2800~3500K / 3500~5500K /5500~8000K |
07 |
Life time |
>50,000 Hours |
08 |
Operating Temperature |
-20 to +60 |
09 |
Storage Temperature |
-20 to +85 |
10 |
Humidity Operating |
10-99% |
11 |
Humidity Storage |
10-99% |
12 |
Brightness |
73lm/w |
13 |
Power Consumption |
45W |
14 |
Certifications |
CE, RoHS |
15 |
Weight |
4.5KGS |
16 |
Size |
1200*300*10mm |
4: led display package
| Packing |
| NW:4.5kgs |
| GW:5 kgs |
| Inner packing:1250*320*30mm |
| each in a box, 5 pcs in a carton |
| carton size:1300X380X160mm |
| G.W:28kg |
Additional Information
| Payment Terms | T/T, L/C |
|---|---|
| Minimum Order | 10pieces |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | for standard size ,10-15 days .for special size , 25-30days. Each panel light with a standard power supply and driver . dimmable and RGB with a controller. customer zie are available. |
| FOB Port | Guangzhou,Shenzhen |
| Loading Info | by sea or by air . We will pack the products in carton and then on pallet . |
| Packing Info | in carton |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Japan & Korea, Latin America, Middle East, North America, Northern Europe, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
