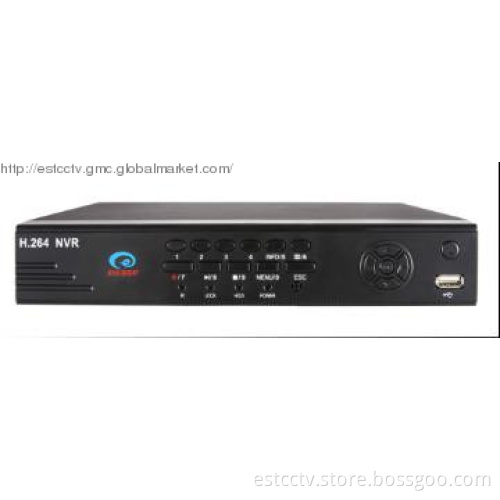

Iphone viewing NVR KIT SYSTEM 720P Wireless CCTV

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Specification

NVR SERIES

4CH NVR 720P

ES-NVR9004HV51

n Key Features

n Network protocol is FAB-D to IPCAMs, and FAB-B to CMS

n support 4 channels 720P IPCAMs input, and 1 channel synchronous playback

n NVR ONE-KEY-MACTH to IPCAMs: IPCAMs would auto reconnecting once NVR new network segment revised.

n Support IPCAMs CDS threshold value setup

n Windows and iMac CMS is free, software supports up to 64 NVRs connecting at the same time.

n Five mobile OS supported, Build-in DDNS domain name.

n Support keyboard connect.

n Well-done lightning protection. No image interference.

n Easy cabling and maintaince. NVR with similar functions as DVR.

Specifications

Model	ES-NVR9004HV51
SOC	Hi3015
Video Compression	H.264
Frequency	50/60Hz
IP video input	4-ch 720P/D1/VGA
Performance	100fps 720P recording and 1-ch 720P synchronous playback
HDMI output	NO
YPbPr output	NO
VGA output	12801024/800600
CVBS output	1-ch, BNC (1.0 Vp-p, 75 Ω)
Recording resolution	CIF/720P/D1/VGA
Network resolution	CIF/720P/D1/VGA
Record mode	Time/Alarm/Motion
Motion detect	Support
CMS	windows，imac
IE	Windows
Mobile OS	Windows mobile, iphone, android, symbian, blackberry
Backup Mode	Flash drive/ USB HDD/ USB CD&DVD-RW / Network download
Network protocol	DHCP,DDNS,UPNP,SMTP,FAB-D,FAB-B
Audio input	1-ch
Audio output	1-ch
Alarm input	4-ch
Alarm output	1-ch
Hard disk	1*2000G
Mouse	Support
Remoter	Support
Speed dome	Support
Keyboard control	Support
DVD-RW	Optional
USB Interface	2*USB2.0
Network Interface	100M RJ45
Dimensions	250(W）45(D)230(H)mm
Power Supply	12VDC
Consumption	<12W

ID/IPCAM

n Key Features

n H.264 Compression 1280*720,support IR CUT,IDCAM no need IP setting, all is auto, just use it as analog camera.

n IR distance : 20meters Network protocol is FAB-D to NVR

n NVR ONE-KEY-MACTH to IPCAMs: IPCAMs would auto reconnecting once NVR new network segment revised

n Dual H.264 streams, support RTSP stream.,RS 485 PTZ control (optional)

n Support CDS threshold value setup

n support audio input and output

n Well-done lightning protection. No image interference.

n Lens: 4mm/6mm/8mm/12mm/16mm,IP66

n Power supply: 12V 1.5A,Frequency: 50/60Hz,

Payment Terms	L/C, T/T, D/A, D/P, Credit Card, Western Union, Money Order, Paypal, Others
Minimum Order	1PC
Lead Time / Delivery Time	1 Day(s)
Sample Available	YES
Delivery Details	3-5 business days after payment confirmed
FOB Port	Shenzhen
Loading Info	International Express SeaAir
Packing Info	Packing Iphone viewing NVR KIT:Carton Box
Target Market(s)	North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
