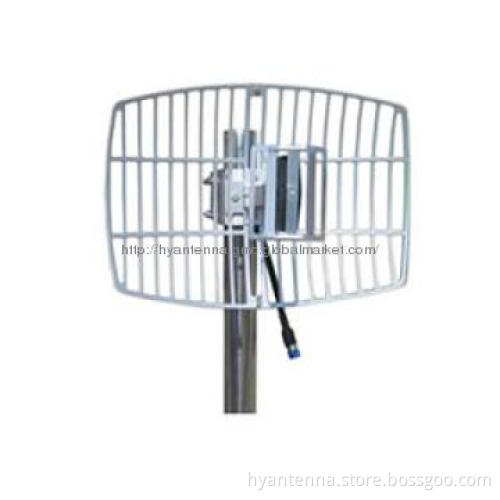

2.4G 15dbi Grid Die Cast wireless Antenna

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Specification

2.4G 15dbi Grid Die Cast Antenna

Electrical Specification

Frequency Range-MHz 2400-2483

Bandwidth-MHz 83

Gain-dBi 15

VSWR ≤1.5

Horizontal Beamwidth -° 16

Vertical Beamwidth-° 21

F/B Ratio-dB ≥20

Nominal Impedance-Ω 50

Polarization Vertical or horizontal

Max. Power-W 200

Connector: N-K

Mechanical Specification

Antenna Dimension-m 0.4×0.3

Weight-kg 1.4

Pole dimension-mm 40~50

Temperature-°C -40~+60

Humidity % 5~95

Payment Terms	T/T, L/C, Others
Minimum Order	100 pcs
Lead Time / Delivery Time	7 Day(s)
Sample Available	YES
FOB Port	Shenzhen
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
