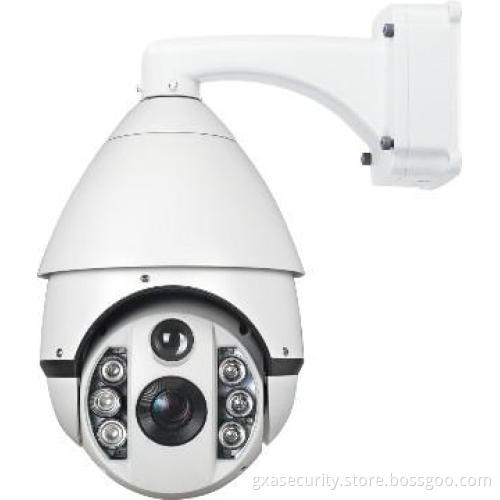

Newest high speed dome ccd camera with 150m perfect night vision
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Size | 7 inch |
|---|---|
| power(Max) | 15W(IR OFF), 36W(IR ON), 51W(with heater) |
| color | white |
| housing | dome |
| Stype: | Speed Dome Camera |
| Type | Video Camera |
| Style | Dome Camera |
| Special Features | Other, Vandal-proof, Waterproof, Weatherproof |
| Image Sensor | CCD |
| Technology | Infrared, Pan, Tilt, Zoom |
Detail Description
New Desgin High Speed Dome Camera
*Alarm(Optional)
Adaptive PELCO-P/D protocol
IR start illumination menu can be adjusted
Auto running memory against power outage
RTC function, call any functions any time
8 privacy masks (need the support of the camera)
Support 128 preset positions, and support lens preset
English OSD menu, user friendly and easily operation
Compass function,proportional zoom and auto flip function
Built in double devices for lightning proof and surge proof
Adopt advanced stepper motor less heat, runs steady, no shaking
Efficient heating device, ensure to work in -20°low temperature(Optional)
Support multi-protocols: SONY、LG、CNB、HITACHI、*
AMSUNG etc. Special protocols can be ODM
upport 4 groups cruise scan(27 presets/group),4 group patterns, one scan, and 360°continuous scan and 360°intermittent scan
IR lights automatically adjust the light intensity according to the zoom speed to reduce the dark angle and flashlight effect.
The upper dome adopts 7 \" aluminum alloy structure, better magnetic shield and heat radiation.
The underpart dome adopts full metal class points bin type design, fast heat dissipation and anti-mist, noninterference light source images and long life span IR light
1pc superpower LED IR light+ 6 pcs LED Array IR lights. Superpower LED IR light equipped with big or small lens(the big lens’ min. Angle is 5°) to secondary condense the light, this model can fully gather IR lights into small angle and emit to far distance, and the effect is excellent and night vision distance is up to 150 meters.
2. Specifications:
3.Package and warranty
* offer OEM and ODM service
* strong carton with foam inside
* 2 year free warranty
* offer good after-sale service
*Alarm(Optional)
Adaptive PELCO-P/D protocol
IR start illumination menu can be adjusted
Auto running memory against power outage
RTC function, call any functions any time
8 privacy masks (need the support of the camera)
Support 128 preset positions, and support lens preset
English OSD menu, user friendly and easily operation
Compass function,proportional zoom and auto flip function
Built in double devices for lightning proof and surge proof
Adopt advanced stepper motor less heat, runs steady, no shaking
Efficient heating device, ensure to work in -20°low temperature(Optional)
Support multi-protocols: SONY、LG、CNB、HITACHI、*
AMSUNG etc. Special protocols can be ODM
upport 4 groups cruise scan(27 presets/group),4 group patterns, one scan, and 360°continuous scan and 360°intermittent scan
IR lights automatically adjust the light intensity according to the zoom speed to reduce the dark angle and flashlight effect.
The upper dome adopts 7 \" aluminum alloy structure, better magnetic shield and heat radiation.
The underpart dome adopts full metal class points bin type design, fast heat dissipation and anti-mist, noninterference light source images and long life span IR light
1pc superpower LED IR light+ 6 pcs LED Array IR lights. Superpower LED IR light equipped with big or small lens(the big lens’ min. Angle is 5°) to secondary condense the light, this model can fully gather IR lights into small angle and emit to far distance, and the effect is excellent and night vision distance is up to 150 meters.
2. Specifications:
| Power Supply |
Output：DC12V±5%，5A Input：AC100～240V 50/60Hz |
| Max. Power |
IR off：15W IR on：31W |
| Sync system | Internal Sync |
| Language | English |
| Pan Speed | 0.08°～240°/S |
| Tilt Speed | 0.08°～240°/S |
| Pan Range | 0°～360°(Continuous) |
| Tilt Range | 0°～90°（180° auto flip） |
| Preset | 128 |
| Preset Accuracy | <±0.1° |
| Tour | 4, 27 presets/tour |
| Pattern | 4 |
| Zone | 1 |
| Protocol | RS485 |
| Communication | PELCO-D/P auto detected |
| Baud Rate | 2400bps、4800bps、9600bps、19200bps |
| Address | 1-255 |
| RTC | Set any key at any time |
| IR Light switch | 91T：Default::1~5 times, open the near-distance lights; 6~9 times, open the near-distance and middle-distance lights; after 10 times, turn of f the near-distance lights, open the middle-distance and far-distance lights. |
| Work Temperature |
Indoor：0℃～+50℃； Outdoor ：-20℃～+50℃(with heater) |
| Work Humidity | <90% |
3.Package and warranty
* offer OEM and ODM service
* strong carton with foam inside
* 2 year free warranty
* offer good after-sale service
Additional Information
| Payment Terms | L/C, T/T, Western Union |
|---|---|
| Minimum Order | 5 pcs |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | Lead Time:3~7 days after receipt of the payment |
| FOB Port | Shenzhen |
| Loading Info | By Express/ Sea/ Air/ customer designated courier |
| Packing Info | 1.Foam/Carton 2.OEM Package 3.Packing size:31*31*45cm |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
