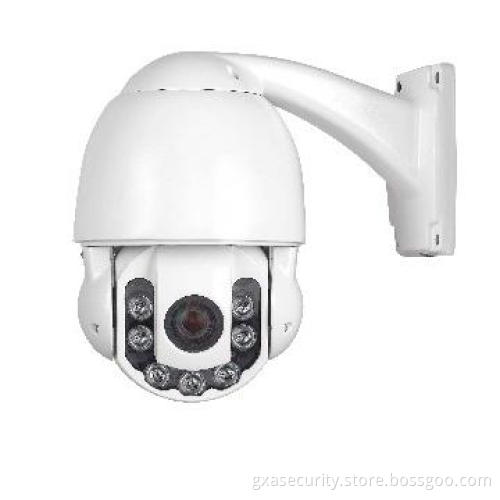

4\" IR PTZ high speed dome CCD camera
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Size | 4 inch |
|---|---|
| power(Max) | 20W |
| color | white |
| housing | dome |
| Stype: | Speed Dome Camera |
| Type | Video Camera |
| Style | Dome Camera |
| Special Features | Other, Vandal-proof, Waterproof, Weatherproof |
| Image Sensor | CCD |
| Technology | Infrared, Pan, Tilt, Zoom |
Detail Description
Features
u OSD menu, user friendly
u 128 presets positions, support lens
u Set soft and hard address
u IR starts illumination is settable
u Auto running memory against power outage;
u RTC function, set any functions at any key;
u Adaptive PELCO-P/D Protocol, special protocol available
u Compass display, proportional zoom and auto flip function;
u Build in double devices for lightning proof and surge proof
u Adopt advanced stepper motor less heat and runs steady, no shaking
u Compatible with 10X SONY、SAMSUNG zoom camera, special protocols can be customized
u Support 4 tours(27 presets/tour), 4 patterns, 1zone, 360°continuous scan and 360°intermittent scan;
u IR lights automatically adjust the light intensity according to the zoom speed to reduce the dark angle and flashlight effect.
u The upper dome adopts aluminum alloy structure, better magnetic shield and heat radiation.
u The underpart dome adopts full metal class points bin type design, fast heat dissipation and anti-mist, noninterference light source images and long life span IR light
Specification
u OSD menu, user friendly
u 128 presets positions, support lens
u Set soft and hard address
u IR starts illumination is settable
u Auto running memory against power outage;
u RTC function, set any functions at any key;
u Adaptive PELCO-P/D Protocol, special protocol available
u Compass display, proportional zoom and auto flip function;
u Build in double devices for lightning proof and surge proof
u Adopt advanced stepper motor less heat and runs steady, no shaking
u Compatible with 10X SONY、SAMSUNG zoom camera, special protocols can be customized
u Support 4 tours(27 presets/tour), 4 patterns, 1zone, 360°continuous scan and 360°intermittent scan;
u IR lights automatically adjust the light intensity according to the zoom speed to reduce the dark angle and flashlight effect.
u The upper dome adopts aluminum alloy structure, better magnetic shield and heat radiation.
u The underpart dome adopts full metal class points bin type design, fast heat dissipation and anti-mist, noninterference light source images and long life span IR light
Specification
| Power Supply |
Output：DC12V±5%，2A Input：AC100～240V 50/60Hz |
| Power | ≤20W |
| Sync system | Internal Sync |
| OSD menu | English |
| Pan Speed | 0.08°～240°/S |
| Tilt Speed | 0.08°～240°/S |
| Pan Range | 0°~360° Continuous |
| Tilt Range | 0°～90°（180°Auto Flip） |
| Preset | 128 |
| Preset Accuracy | <±0.1° |
| Tour | 4, 27 presets/tour |
| Pattern | 4 |
| Zone | 1 |
| Communication | RS485 |
| Protocol | PELCO-D/P auto detected |
| Baud Rate | 2400bps、4800bps、9600bps、19200bps |
| Address | 1-255 |
| RTC | Set any functions at any key |
| IR Switch | Default: 1~5 times open near-distance lights, ager 6 times, turns off near-distance lights and open far-distance lights. |
| Work Temperature | -10℃～50℃ |
| Work Humidity | <90% |
Additional Information
| Payment Terms | L/C, T/T, Western Union |
|---|---|
| Minimum Order | 5 pcs |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | Lead Time:3~7 days after receipt of the payment |
| FOB Port | Shenzhen |
| Loading Info | By Express/ Sea/ Air/ customer designated courier |
| Packing Info | 1.Foam/Carton 2.OEM Package 3.Packing size:31*31*45cm |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
