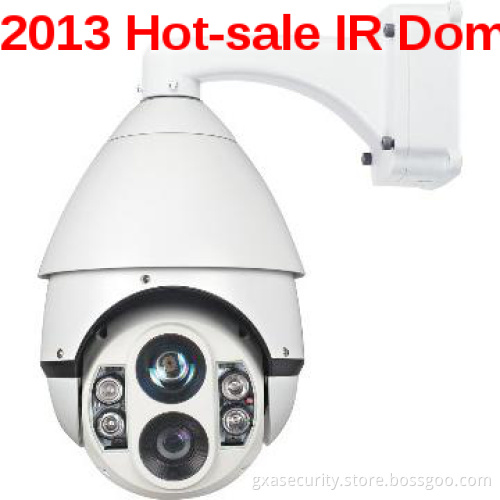

2013 Hot- Sale IR high speed dome zoom CCTV PTZ camera GXA-DA92T
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Outdoor camera | IR Camera |
|---|---|
| 7 Inch | DC12V/5A |
| Style | Dome Camera |
| Special Features | Other, Waterproof |
| Type | Other |
| Image Sensor | CCD |
| Technology | Infrared, Other, Pan, Tilt, Zoom |
Detail Description
u Alarm(Optional)
u Adaptive PELCO-P/D protocol
u IR start illumination menu can be adjusted
u Auto running memory against power outage
u RTC function, call any functions at any time
u 8 privacy masks (need the support of the camera)
u Support 128 preset positions, and support lens preset
u English OSD menu, user friendly and easily operation
u Compass function,proportional zoom and auto flip function
u Built in double devices for lightning proof and surge proof
u Adopt advanced stepper motor less heat, runs steady, no shaking
u Efficient heating device, ensure to work in -20°low temperature(Optional)
u Support multi-protocols: SONY、LG、CNB、HITACHI、SAMSUNG etc. Special protocols can be ODM
u Support 4 groups cruise scan(27 presets/group),4 group patterns, one scan, and 360°continuous scan and 360°intermittent scan
u IR lights automatically adjust the light intensity according to the zoom speed to reduce the dark angle and flashlight effect.
u The upper dome adopts 7 \" aluminum alloy structure, better magnetic shield and heat radiation.
u The underpart dome adopts full metal class points bin type design, fast heat dissipation and anti-mist, noninterference light source images and long life span IR light
u 1pc IR ZOOM + 4 pcs LED Array IR lights. Superpower LED IR light equipped with big or small lens(the big lens’ min. Angle is 5°) to secondary condense the light, this model can fully gather IR lights into small angle and emit to far distance, and the effect is excellent and night vision distance is up to 150 meters.
u Adaptive PELCO-P/D protocol
u IR start illumination menu can be adjusted
u Auto running memory against power outage
u RTC function, call any functions at any time
u 8 privacy masks (need the support of the camera)
u Support 128 preset positions, and support lens preset
u English OSD menu, user friendly and easily operation
u Compass function,proportional zoom and auto flip function
u Built in double devices for lightning proof and surge proof
u Adopt advanced stepper motor less heat, runs steady, no shaking
u Efficient heating device, ensure to work in -20°low temperature(Optional)
u Support multi-protocols: SONY、LG、CNB、HITACHI、SAMSUNG etc. Special protocols can be ODM
u Support 4 groups cruise scan(27 presets/group),4 group patterns, one scan, and 360°continuous scan and 360°intermittent scan
u IR lights automatically adjust the light intensity according to the zoom speed to reduce the dark angle and flashlight effect.
u The upper dome adopts 7 \" aluminum alloy structure, better magnetic shield and heat radiation.
u The underpart dome adopts full metal class points bin type design, fast heat dissipation and anti-mist, noninterference light source images and long life span IR light
u 1pc IR ZOOM + 4 pcs LED Array IR lights. Superpower LED IR light equipped with big or small lens(the big lens’ min. Angle is 5°) to secondary condense the light, this model can fully gather IR lights into small angle and emit to far distance, and the effect is excellent and night vision distance is up to 150 meters.
| Power Supply |
Output：DC12V±5%，5A Input：AC100～240V 50/60Hz |
| Max. Power |
IR off：15W IR on：31W |
| Sync system | Internal Sync |
| Language | English |
| Pan Speed | 0.08°～240°/S |
| Tilt Speed | 0.08°～240°/S |
| Pan Range | 0°～360°(Continuous) |
| Tilt Range | 0°～90°（180° auto flip） |
| Preset | 128 |
| Preset Accuracy | <±0.1° |
| Tour | 4, 27 presets/tour |
| Pattern | 4 |
| Zone | 1 |
| Protocol | RS485 |
| Communication | PELCO-D/P auto detected |
| Baud Rate | 2400bps、4800bps、9600bps、19200bps |
| Address | 1-255 |
| RTC | Set any key at any time |
| IR Light switch | in 10 times, open IR module+ near distance lights; after 10 times, open IR module+ far-distance lights, turn off the near-distance lights. |
| Work Temperature |
Indoor：0℃～+50℃； Outdoor ：-20℃～+50℃(with heater) |
| Work Humidity | <90% |
Additional Information
| Payment Terms | T/T, Western Union, Paypal |
|---|---|
| Minimum Order | 1pc |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | NO |
| Delivery Details | Conditions and Terms:Payment terms: T/T 30% deposit in advance, the balance should be paid before delivery.Lead time : one week after receipt of your deposit.Warranty : Two years. |
| FOB Port | Shenzhen |
| Loading Info | By Express |
| Packing Info | Foam/Carton |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
