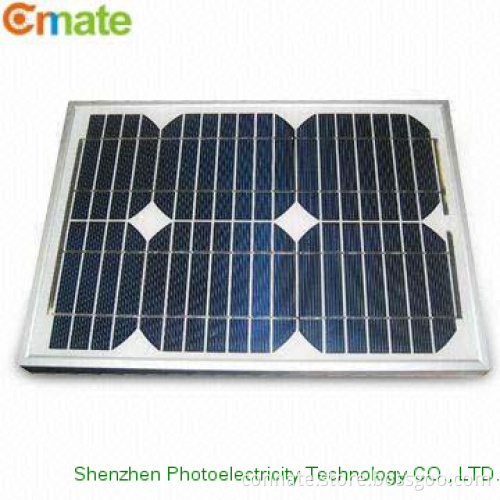

Small Size 5W Monocrystalline Silicon Solar Panel With High Efficiency

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Frame	Aluminum
Size	28218918mm
Warranty	5years,90% power 10 years,80% power 25 years
Cell efficiency	16.8%
Module efficiency	10.4%
Output Power	5W
Material	Polycrystaline Silicon
Certification	CE, IEC, ISO, Other, RoHS, TUV

Detail Description

Small Size 5W Monocrystalline Silicon Solar Panel With High Efficiency

Features:
Solar Cell Using high-quality 125x125mm mono-silicon solar cells Tempered glass High transmission rate with low reflection glasses enhance the performance of the modules EVT&TPT Using strong sticking EVA and dampproof, anti-oxidant TPT to yield module life 25- year Limited warranty on power output

Technical Date:

Operating temperature -40°C +85°C Maximum system voltage 1000VDC Guaranteed Power Output 15years by 90% of its nominal power rating 25 years by 80% of its nominal power rating Warranty period : 5 years

Operating temperature -40°C +85°C
Maximum system voltage 1000VDC
Guaranteed Power Output 15years by 90% of its nominal power rating
25 years by 80% of its nominal power rating
Warranty period : 5 years

Maximum power:5W

Power tolerance:±3%

Optimum operation voltage:17.2Vm(V)

Optimum operation current:0.291Im(A)

Open circuit voltage:21.6Voc(V)

Short circuit current:0.32Isc(A)

Maximum system voltage:900(VDC)

Cell efficiency:16.8%

Module efficiency:10.4%

Cell Qty,type,arrangement:36pcs mono crystalline cell(2*18)

Cell size:6.94*125mm

Bypass diade:1pcs

Temp. coefficient power:-0.45(%/°C)

Temp. coefficient Voc:0.05(%/°C)

Temp. coeffieient Isc:-0.35(%/°C)

Nominal Operating cell temp.:47±2°C

Standard test condition:1000Wsq.m,25°C,AM1.5

Mechanical characteristics:

Size:282*189*18mm

Junction box:VI/VII

Weight:0.6kg

Glass:High transmission of light, low iron, tempred glass

Packing means:

Qty/CTN:20pcs

Ctn box size:300*385*215mm

Absolute maximum ratings:

Dielectric isolation voltage:2000MAX(VDC)

Operating temperature:-40--+85°C

Strorage temperature:-40--+85°C

Maximum wind resistance:60(m/s)

Maximum hail diameter @80Km/h:25mm

Maximum load capacity:200(kg/m)

Quality guarantee:5 years guarantee, output power 90% in 10 years,80% in 25 years.

Warmly welcome your enquiry ! Thank you !

Additional Information

Payment Terms	L/C, T/T, D/A, D/P, Credit Card, Western Union, Money Order, Paypal
Minimum Order	10 pcs
Lead Time / Delivery Time	21 Day(s)
Sample Available	YES
Delivery Details	Small quantity less than 21 days,big quantity more than 21days
FOB Port	Shenzhen
Loading Info	can shipped by express,by sea,by air transport
Packing Info	Qty/CN:2 pcsCtn size:19910213CMQty/20GP:180 pcs by 5pcs palletPllet size:21010213.5CM
Target Market(s)	Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe
