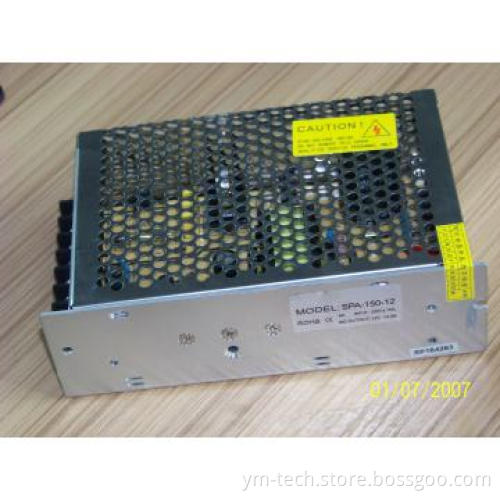

150w non-waterproof led power supply with ce rohs
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Ac input voltage range | 85~264VAC 47~63Hz;124~370VDC |
|---|---|
| Input current | 3.2A/115V,1.6A/230V |
| AC inrush current | Cold-start current 36A/230V |
| Working temperature | -10℃~+60℃,20%~90%RH |
| Weight/packing/size | 0.43Kg,50pcs/21.5kg,159*99*49mm |
| Voltage | 12V |
| Power | 150W |
| Life | 1-3years |
Detail Description
150w non-waterproof led power supply with ce rohs
| Ac input voltage range | 85~264VAC 47~63Hz;124~370VDC |
| Input current | 3.2A/115V,1.6A/230V |
| AC inrush current | Cold-start current 36A/230V |
| Leakage current | <3.5mA/240VAC |
| DC adjustable range | ±10% rated output voltage |
| Over load protection | 105~135% hiccup mode ,auto-recovery |
| Setup ,rise, hold up time | 200ms 50ms 20ms |
| Withstand voltage | I/P-O/P:1.5KvAC 1minute I/P-FG:1.5KvAC 1minute O/P-FG:0.5KvAC 1minute |
| Working temperature | -10℃~+60℃，20%~90%RH |
| Weight/packing/size | 0.43Kg,50pcs/21.5kg,159*99*49mm |
| Model | Output | Error | range | Efficiency |
| YMSLV-050150K | 5V,0~30A | ±1% | 100mV | 81% |
| YMSLV-120150K | 12V,0~12.5A | ±1% | 120mV | 84% |
| YMSLV-150150K | 15V,0~10A | ±1% | 120mV | 84% |
| YMSLV-240150K | 24V,0~6.5A | ±1% | 120mV | 85% |
Additional Information
| Payment Terms | L/C, T/T, Others |
|---|---|
| Minimum Order | 100PCS |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | by sea,by air |
| FOB Port | Shenzhen |
| Loading Info | FOB Shenzhen, EXW Shenzhen |
| Packing Info | FOB Shenzhen, EXW Shenzhen |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
