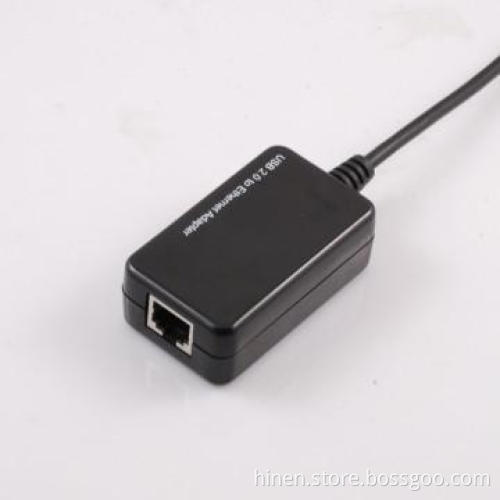

USB 2.0 to Ethernet Adapter

USB 2.0 to Ethernet Adapter


1.0Introduction

The USB 2.0 to Ethernet Adapter is a high performance and low cost solution.
It enables a Fast Ethernet network connection capability for desktops, notebook PC’s with standard USB port. It resolves the trouble of the computer without Ethernet port that you can also connect computer to Ethernet through USB 2.0 port easily.


1.2 Features

• Supports10/100 Mbps auto-sensing.
• SupportsUSB specification 1.0, 1.1 and 2.0.
• Supports802.3 10BASE-T/100BASE-TX.
• Supports twisted pair crossover detection and tonect Computer to USB 2,auto-correction(HP Auto-MDIX)
• Supports Operating system for computers:

Windows:Windows 7 (32/64bit), Windows Vista (32/64bit), Windows XP (32/64bit)
Mac: Mac OS X 10.4/10.5/10.6.


2.0 SPECIFICATIONS

Connector
USB 2.0	USB Male x1
EthernetPort	RJ45 x1
Warranty
Limited Warranty	1 Year Parts and Labor
Environmental
Operating Temperature	0 ℃to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃to +80℃
Storage Humidity	5% to 90 % RH (no condensation)
Power Requirement
External Power Supply	NO
Power consumption (Max)	0.8W
Accessories Adapter
User Manual	English Version
CD	CD X1


Note: Specifications are subject to change without notice.


3.0 PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:


• Main unit x1
• User\'s Manual x1
• CD driver x1
