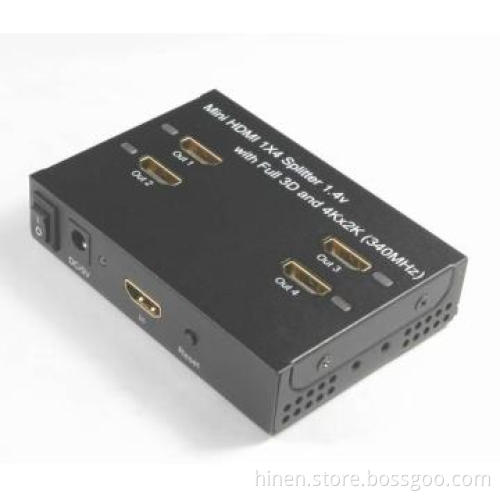

Mini HDMI 1X4 Splitter with Full 3D and 4Kx2K (340MHz)

1.  Introduction


     This is a small, beautiful, practical HDMI Splitter. It distributes the input of the HDMI signal into the four identical outputs simultaneously. It supports full 3D format and 4Kx2K. Its video amplifier bandwidth can be up to 3.4 Gpbs/340MHz. The HDMI Splitter offers solutions for HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.


2.  Features

    This HDMI Splitter has many features that enable it to perform in a superior manner. Among those features you will find:
       Easy to Use: Install in seconds, no need of setting.
       One HDMI input，four HDMI outputs.
       Supports Full 3D and 4Kx2K resolution.
       Supports highest video resolution 1080p.
       Supports 340MHz/3.4Gbps per channel (10.2Gbps all channel) bandwidth.
       Supports 12bit per channel (36bit all channel) deep color.
       Supports HDCP 1.3
       Supports uncompressed audio such as LPCM
       Supports compressed audio such as DTS Digital, Dolby Digital（including DTS-HD and Dolby  True HD）.


3.  SPECIFICATIONS



Signal Inputs/Output
Input DDC Signal	5 volts p-p (TTL)
MaximumSingle Link Range	4Kx2K
Output Video	HDMI(with full 3D and 4Kx2K)
Operating Frequency
VerticalFrequency Range	50/60Hz
Video Amplifier Bandwidth	3.4Gbps/340MHz
Resolutions(HDTV)
Interlaced(50&60Hz)	480i,576i,1080i
Progressive(50&60Hz)	480p,576p,720p,1080p,4Kx2K
Mechanical
Size(L-W-H)	100×70×23mm
Weight(Net)	180g
Warranty
Limited Warranty	1 Year Parts and Labor
Environmental
Operating Temperature	0℃to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃to +80℃
Storage Humidity	5% to 90 % RH (no condensation)
Power Requirement
External Power Supply	5V DC@ 3A
Power consumption (Max)	12W
Regulatory Approvals
Converter Unit	FCC,CE,UL
Power Supply	UL,CE,FCC
Accessories Adapter
AC Power Adapter	USstandard, UK standard and so on
User Manual


Note: Specifications are subject to change without notice.
