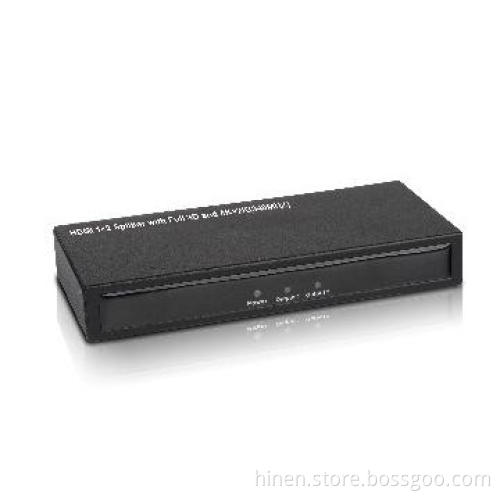

HDMI Splitter 1×2 with Full 3D and 4K×2K (340MHz)

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

color	black
HDMI	1.4V
Resolution Ratio	1080p
Application	HDTV

Detail Description

HDMI Splitter 1×2 with Full 3D and 4K×2K (340MHz)

Features
This HDMI Splitter has many features that enable it to perform in a superior manner. Among those features you will find:
l Easy to Use: Install in seconds, no need of setting.
l One HDMI Input, two HDMI outputs
l Supports Full 3D and 4K×2K resolution.
l Supports highest video resolution 1080p.
l Supports 340MHz/3.4Gbps per channel (10.2Gbps all channel) bandwidth.
l Supports 12bit per channel (36bit all channel) deep color.
l Supports HDCP 1.3
l Supports uncompressed audio such as LPCM
l Supports compressed audio such as DTS Digital, Dolby Digital（including DTS-HD and Dolby True HD）

SPECIFICATIONS

Signal Inputs/Output
Input DDC Signal	5 volts p-p (TTL)
Maximum Single Link Range	4K×2K
Output Video	HDMI(with full 3D and 4K×2K)
Operating Frequency
Vertical Frequency Range	30/50/60Hz
Video Amplifier Bandwidth	3.4Gbps/340MHz
Resolutions(HDTV)
Interlaced(50&60Hz)	480i,576i,1080i
Progressive(50&60Hz)	480p,576p,720p,1080p,4K×2K
Mechanical
Size(L-W-H)	154×69.05×22.9mm
Weight(Net)	260g
Warranty
Limited Warranty	1 Year
Environmental
Operating Temperature	0℃ to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃ to +80℃
Storage Humidity	5% to 90 % RH (no condensation)
Power Requirement
External Power Supply	5V DC@ 2A
Power consumption (Max)	2.3W
Regulatory Approvals
Converter Unit	FCC,CE
Power Supply	CE,FCC
Accessories Adapter
AC Power Adapter	US standard, UK standard and so on
User Manual	1

PANEL DESCRIPTIONS

1)     Connect input devices to the input of the HDMI Splitter by using HDMI cable .
2)     Connect output devices to the outputs of the HDMI Splitter by using HDMI cable.
*please refer to the connection diagram section.
3)     Insert the DC side of 5v power supply into it and then connect the AC side of the power supply into the wall outlet.

Additional Information

Payment Terms	T/T
Minimum Order	50
Lead Time / Delivery Time	10 Day(s)
Sample Available	YES
Delivery Details	Negotiable
FOB Port	Hong Kong,Shenzhen
Loading Info	Negotiable
Packing Info	Negotiable
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
