transfer 1 SDI signal to 8 monitors simultaneously SDI Splitter

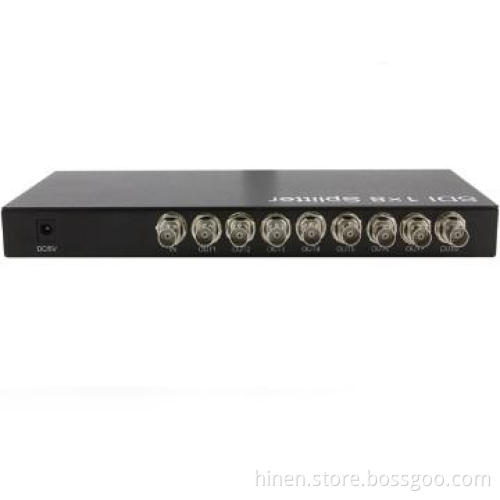

SDI 1X8 Splitter
P/N:2041

1.0 Introduction
 This is a 1X8 SDI splitter, which make it possible to transfer 1 SDI signal to 8 monitors simultaneously. Up to eight outputs could save you lots trouble of setting other signals when you want to enjoy other SDI programs.


1.1Features
This product is specially designed with equalizer IC in its input and drive IC in its outputs. All of the input and outputs support long coaxial cable.
Support multiple video resolution：
• SD 480i, 576i and 625i
• HD 720p @24/25/30/50/60
• HD 1080i @50/60
• HD 1080p @24/25/30,
• 3G 1080p @50/60
Support multiple color space：
• RGB or YCbCr 4:4:4 sampled
• YCbCr 4:2:2 or 4:2:0 sampled
Support wide range data rates：270Mbps～2.97Gbps.
Support multiple deep color：8bit、10bit、12bit.


2.0 SPECIFICATIONS


Signal Input/ Output
Input Connector	1x SDI BNC Male
Output Connector	8x SDI BNC Male
SDI Cable Distance(RG59 cable)
3G Mode	Up to 80m
HD Mode	Up to 120m
SD Mode	Up to 200m
Mechanical
Size(L-W-H)	257x133x26 mm
Weight (Net)	788 g
Warranty
Limited Warranty	1 Year
Environmental
Operating Temperature	0 ℃to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃to +80℃
Storage Humidity	5% to 90 % RH (no condensation)
Power Requirement
External Power Supply	5V DC@ 2A
Power consumption (Max)	1.8 W
Regulatory Approvals
Converter Unit	FCC,CE,UL
Power Supply	UL,CE,FCC
Accessories Adapter
User Manual	English version

Note: Specifications are subject to change without notice.



3 PACKAGE CONTENT
Before using this product, please check the packaging and make sure the following items are contained in the shipping carton:

• 1XMain unit
• 1XPower adapter 5V@2A
• 1XUser\'s Manual

4 CONNECTION DIAGRAM
