3G SDI 1×16 Splitter with Reclock SDI Splitter

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Input Connector	1xSDI BNC Male
Output Connector	16xSDI BNC Male
Application	Other
Resolution Ratio	1080p

Detail Description

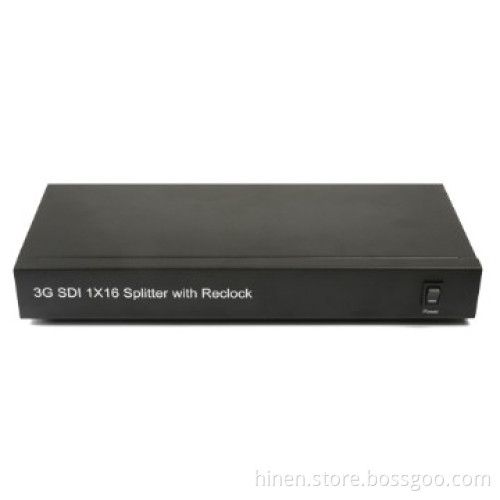

3G SDI 1×16 Splitter with Reclock SDI Splitter

This is a 3G 1×16 SDI splitter with Reclock, which makes it possible to transfer 1 SDI signal to 16 monitors simultaneously. This 3G SDI splitter is the most efficient solution for transmission of digital video and audio signals from a single SDI source to multiple high definition SDI monitors or other SDI devices, making video and audio more affordable and accessible.
Features
This product is specially designed with equalizer IC in its input and drive IC in its outputs. All of the input and outputs support long coaxial cable.
l Support multiple video resolution：
•      SD 480i, 576i and 625i
•      HD 720p @24/25/30/50/60
•      HD 1080i @50/60
•      HD 1080p @24/25/30,
•      3G 1080p @50/60
l Support multiple color space：
•      RGB or YCbCr 4:4:4 sampled
•      YCbCr 4:2:2 or 4:2:0 sampled
l Support wide range data rates：270Mbps~2.97Gbps.
l Support multiple deep color：8bit, 10bit, 12bit.
l Compatible with HDcctv 1.0, HD-SDI (ST 292), 3G-SDI (ST 424) and SD-SDI (ST 259)
l Electrical protection：
• Power reverse polarity protection
•Power Overvoltage protection, but voltage must <28V
•ESD protect, Contact Discharge 8KV, Air Discharge 15KV

Additional Information

Payment Terms	T/T
Minimum Order	1
Lead Time / Delivery Time	30 Day(s)
Sample Available	YES
Delivery Details	Negotiable
FOB Port	Shenzhen
Loading Info	Negotiable
Packing Info	Negotiable
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
