HDMI Switch-Splitter 4X2 (Matrix) by 2xCat-5e/6

HDMI SWITCH SPLITTER 4X2



Dear customer

Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.


1.0 Introduction

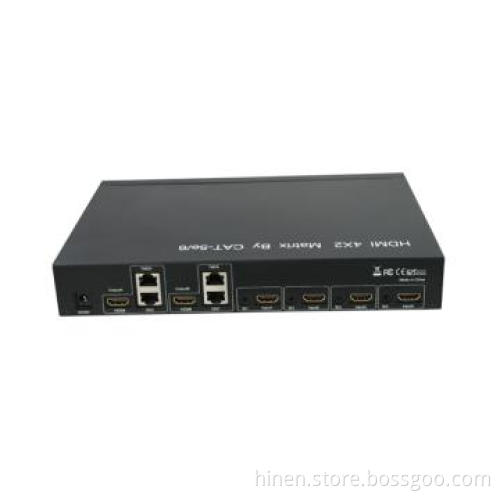

This 4X2 Matrix HDMI SWITCH SPLITTER by cat5e/6 offers unprecedented flexibility and convenience by routing high definition audio/video from any of four HDMI video sources to any of 2 displays over HDMI cable or 2 remote displays over inexpensive, standard CAT5e/6 cable. It eliminates the need to disconnect and reconnect sources to a display equipped with one input.
Two receivers work with the Switch Splitter as a full functional module.Full High-Resolution HDTV signals are supported up to a resolution of 1080p over HDMI cable 15m or at a maximum distance of .40M over two pieces of CAT5e/6 cable. The 4X2 Matrix HDMI SWITCH SPLITTER works with HD-DVD players, TiVo systems, HT PCs, and satellite set-top boxes that connect to an HDMI display. Every source and display is accessible at all times by selecting it with an IR remote, ,front panel buttons or through RS232 port.


1.1Features

This product has many features that enable it to perform in a superior manner. Among those features you will find:

• Allows any HDMI display to view any source at anytime
• Allows any source to be displayed on multiple displays at the same time
• HDMI or DVI to HDMI cables are used to connect the inputs and the matrix output
• Each Output includes one HDMI output and UTP output over cat5e/6, but only one way is available at a time.
• Each UTP output is connected to a Receiver.
• UTP output extends signal up to 40m for 1080p by UTP cable with cross stand inside.
• Each Input includes an infrared Emitter, which is used to control the long-distance source device by Remote Control.
• Each display\'s inputs can be switched with the IR remote control,front panel buttonsor through RS232
• Supports highest video resolution 1080p.
• Supports 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth.
• Supports 12bit per channel (36bit all channel) deep color.
• Supports HDCP
• Supports uncompressed audio such as LPCM.
• Supports compressed audio such as DTS Digital, Dolby Digital（including DTS-HD and Dolby  True HD）.
