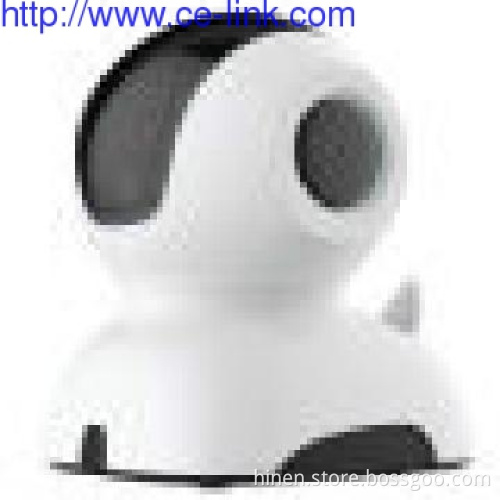

IP Camera 03 your safty guard

IP Camera 02
 P/N:5030

1.0 Introduction
This product is a collection of a variety of high-tech as IP Camera, whether day or night, it will be your loyal guard. As long as the network supports, you can access to your IP Camera through your Mobile phone or PC at any time , everything is under control!

    This product can also be used for LAN or PC directly, as long as your Mobile phone or PC and the product are in the same local area network, it can be readily attached to the products on the video and voice conversation.

    This product have the function of PTZ control , you can control IP Camera pointing to the place that you are interested through your Mobile phone or PC , you can also conduct visual intercom with each other .

    The product have the function of motion detection , then you don\'t need to stare at the screen all the time for fearing of missing anomalies , as long as the image of the location that you set changes, you will receive the Email, and it will enclose the changed Video capture to you . you can also set it to inform the person that you need to inform through the local alarm output signal when there’s a alarm .

    The product supports advanced P2P network transmission technology , you don’t have to worry about the complicated network settings any longer .

 1.1Features


• HD filming, up to 1280x720@ 30fps.
• Video file supports local storage ( using TF Card ), the largest support is 32GB.
• Can do real-time video transmission through wired ( Lan ) or wireless(WiFi ) network.
• With Tripod head ,360 degree angle adjustment, you can take photos of every place.
• High intensity infrared light lamp, it makes you shooting clearly no matter in the daytime or in the evening.
• Supports motion detection function, supports alarm linkage output, and can notify you through the E-mail.
• Supports external Linkage alarm input.
• Using advanced H264 video compression algorithm, supports H264 Main   Profile@Level3.0code,H.264Baseline Profile@Level3.0 code and       MJPEG/JPEG Baseline code, can easily achieve transmitting the high clear image with low broadband .
• Based on the embedded Linux operating system, a built-in WEB server, can be accessed directly by accessing a web browser , stable system , powerful   function, safe and reliable.
• Using the COMS camera of industrial quality with superior Low illumination effect.
• Supports two-way voice.
• Supports IEEE802.11b/g/n wireless network ( optional).
• Built-in IR-Cut, can satisfy the need to monitor day and night.
• Flexible event linkage mechanism, can be used to set the video, alarm,   control, etc.
• Supports Micro SD card alarm recording, remote alarm video, FTP and other various alarm and alarm snapshot storage.
• Supports one - Button reset function.
• Multiple access mode ，Android mobile phone and IOS（iPhone、iPod、iPad）access the IP Camera, can conduct centralized management, viewing and videotaping through the independent researched and developed video management software of the company.


2.0 SPECIFICATIONS

Image sensor	1/4” Progressive scan CMOS Sensor ( 1 megapixel HD 720P 30 fps)
Lens	1/3” 4.2 mm F1.8 IR Megapixel lens with IR-CUT
Minimum Illumination	Color mode: 0.5 lux at F1.8 Black/white mode: 0 lux (IR LEDs on)
Day/Night Facilities	12 Infrared-led around the lens (850nm) 10 meter effective night vision range
Pan range	-175 º～175 º
Tilt range	-15º to 90º
Max speed	Pan: 90°/sec  Tilt: 90°/sec
Video compression	H.264 Basline Profile@Level 1-4.1
Image Frame Rate	720P(1280x720) 30 fps
Bit Rate	16K ~ 6M bps
Resolutions	Bit rate 1：720P(1280x720) 30 fps Bit rate 2：VGA (640*480)  30fps Bit rate 3：QVGA(320x240) 30fps
Audio	Intern 1 MIC，1 line output
Users	8 simultaneous users Unlimited number of users using multicast
Alarm I/O	Alarm input : 1 External alarm input Alarm output:1 transistor  Open drain output，Action：<1.1V@500mA
Processors and OS	M8126 SoC ARM926 + H.264 Encoder Operating System: Linux 2.6.28
Supported Protocols	TCP, UDP, IP, HTTP, DHCP, PPPoE, UPnP etc
Video management software	NVSClient--Surveillance application for viewing, recording and archiving up to 5*6 cameras. Easyview P2P software ActiveX control
Wireless WiFi	IEEE 802.11 b/g/n WEP WPA/WPA2 Encryption
SD storage	Support Micro SD/TF card local storage Max 32G
Power	DC 12V Max 12W
Operating Conditions	0 - 45 °C (32 - 113 °F) Humidity 20 - 80% RH (non-condensing)
Dimensions (HxWxD) and Weight	120 X 129 X 94mm, 0.37 Kg
