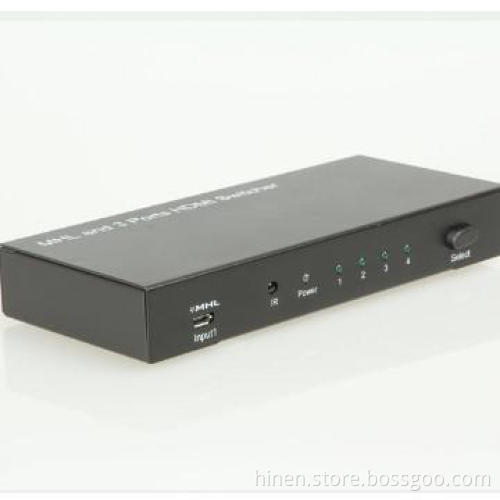

One MHLinput and 3 Ports HDMI input Switcher Combo Switcher

MHL and 3 Ports HDMI Switcher
P/N:CEHLU0401

Introduction:
This MHL and 3 Ports HDMI Switcher not only has three HDMI inputs ports but also has one port MHL input port. You can connect three HDMI source devices to HDMI inputs and one MHL device to MHL input. With MHL (Mobile High-Definition Link) port you can share video and audio from mobile phone on an HDTV. You can easily select source between HDMI inputs and MHL input by remote control and manual button.

Features:
This HDMI Switcher has many features that enable it to perform in a superior manner. Among those features you will find:

l  Switches easily between the three HDMI and one MHL sources

l  Supports highest video resolution 1080p.

l  Supports 250MHz/2.5Gbps per channel (7.5Gbps all channel) bandwidth.

l  Supports 12bit per channel (36bit all channel) deep color.

l  HDCP pass-through.

l  Supports uncompressed audio such as LPCM.

（including DTS-HD and Dolby True HD）.

l  Built-in MHL Receiver converts a single to HDMI four differential pairs

l  MHL input supports all bandwidth between 25-75MHz.

l  Support 3D all format, including 1080p@23.98/24Hz, 720p@59.94/60Hz/50Hz, bandwidth up to 225MHz for three HDMI inputs.

Connection
