HDMI Extender by CAT-5e/6 Cable

HDMI Extender by CAT-5e/6 Cable
P/N:E60

1.0 Introduction

This kind of HDMI Extender by CAT-5e/6 uses two pieces of UTP cable with cross stand insideto extend the HDTV display up to 60 meters for 1080p.  It not only breaks the limitation of the HDMI cable transmission length，but also CAT-5e/6 has more flexibility and convenience in cable construction.

It is equipped with HDMI (high definition multimedia interface) connectors and is capable of supporting DVI (digital visual interface) equipment when used with an HDMI to DVI Adapter, providing greater flexibility and options when integrating several home theater components.

This productoffers solutions for residential consumers: HDTV retail and show site, HDTV, STUB, DVD and Projector factories, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.



• Benefits
• The length of HDMI cable is fixed and unchangeable after it is produced. Because the HDMI connector can only be soldered or terminated by the professional workersin factory, the users can not reduce or increase by themselves. However CAT-5e/6cables are available everywhere and be processed easily by the user or installer.
• Because the header of the long HDMI cable is big, using it mustin hidden method. What\'s more,it is not easy to bendthe HDMI cable and to pull it through the in-wall tube or tray.However,CAT-5e/6cable has no such problems.
• Usingthis Extendertogether withUTP cable with cross stand inside, the transmission distance can be up to 60metersfor 1080p.For the general HDMI cables, theymust be customized when the length is over 10 meters.

1.2 Features

This HDMI Extender has many features that enable it to perform in a superior manner. Among those features you will find:



• One pair as a full functional module, no need of setting.
• CAT-5e/6 cable can substitute HDMI cable to achieve long distance transmission.
• Follow the standard of IEEE-568B.
• Transmission distance can be up to 60 meters for 1080p using UTP cable with cross stand inside.
• Auto-adjustment of feedback, equalization and amplify, the user does not need to care about the length of the cable.
• Compact size.
• Supports HDMI1.2a.
• Supports highest video resolution 1080p.
• Supports 165MHz/1.65Gbps per channel (4.95Gbps all channel) bandwidth.
• Supports 8bit per channel (24bit all channel) deep color.
• Supports HDCPSupport uncompressed audio such as LPCM
• Supports compressed audio such as DTS Digital, Dolby Digital（including DTS-HD and Dolby  True HD）

2.0 SPECIFICATIONS


Note:1. In order to achieve the high transmission quality, please choose the UTP cable with cross stand inside
2: The cables with lower quality will not achieve the perfect transmission effect and long distance.
3: Theoretically the function of the product is normal when adopt short distance transmission.

If the product cannot transmit long distance, this is to say, there are quality problems in the transmission cables.


3.0 Package Contents


Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

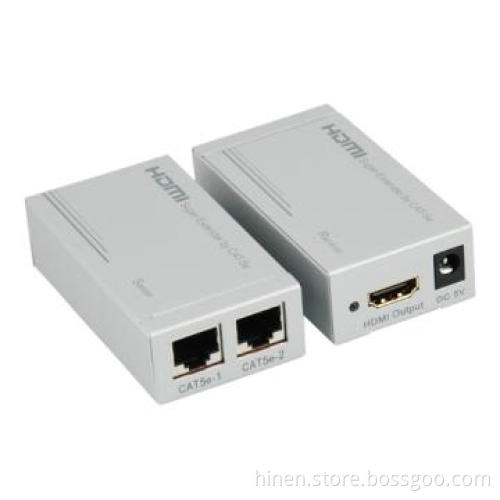

1.  Main unit NO. 1  Sender
2.  Main unit NO. 2  Receiver
3.  5V DC Power Supply.
4.  User’s Manual
