Ten times of USB 2.0- -USB 3.0 to HDMI Converter

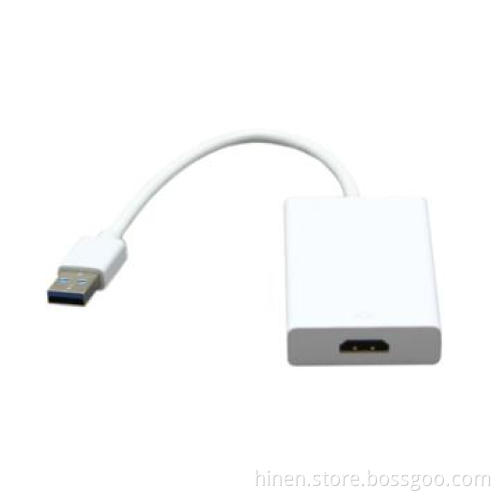

USB 3.0 to HDMI Converter



1.0 Introduction
 This USB 3.0 to HDMI Converter provides high throughput using the USB 3.0 bus and supports the high definition monitors with high resolution and high refresh rate. It’s ten times of USB 2.0 and greatly improves the stability of transportation. The USB 3.0 Converter allows you to connect your desktop PC or laptop\'s USB port to an extra monitor or TV. You can watch videos or slideshows on the big screen.


1.1Features


• Compliant with USB 3.0 specification.
• Compliant with HDMI specification v1.3.
• USB 3.0 5GMbps bandwidth for connecting to computers
• Support USB 3.0 input and HDMI output.
• Backward compatible with USB 2.0 specification.
• Supports for External Display Interface IC’s via
• Supports display cloning and extending.

• USB video supports Primary, Extended, Mirror, Rotate

• Reduced power operating mode ,supports bus-powered and self-powered operation
• Supports Operating system for computers:

Windows: Windows 7, Windows Vista, Windows XP, Mac OSX v10.7, Mac OSX v10.8.



2.0 SPECIFICATIONS


Signal Inputs/Output
Input port	USB 3.0 A Male x1
Output port	HDMI Female x1
Operating Frequency
Video Amplifier Bandwidth	Max to 1.65Gbps/165MHz
Warranty
Limited Warranty	1 Year Parts and Labor
Environmental
Operating Temperature	0 ℃ to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃ to +80℃
Storage Humidity	5% to 90 % RH (no condensation)
Storage Temperature	-55℃ to +150℃
Power Requirement
External Power Supply	NO
Power consumption (Max)	1.27W
Accessories Adapter
Remote control	NO
User Manual	English Version

3.0 PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:


• Main unit x1
• User\'s Manual x1
• CD driver x1
