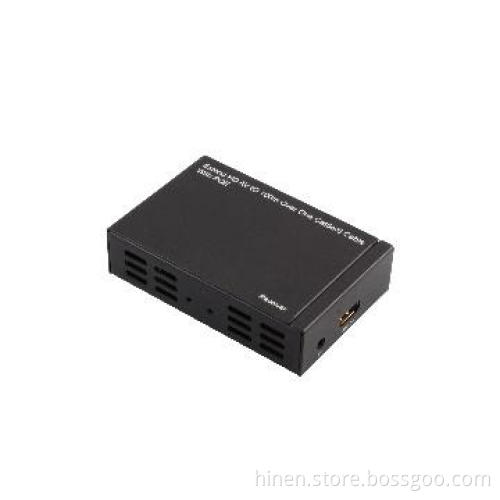

3D pass-through HDMI Extender with POE

HDMI Extender  with POE
P/N:CEBSTB001

1.0 Introduction

The Extender is based on the HDBaseT technology. It extends your HD display with the resolutions of 1080p/60Hz up to 330 feet (100 meters) away from your HDMI or DVI-D source using one CAT5e/6 cable. Built-in IR extender function allows IR remote control of Source devices from remote viewing location by sending IR commands received in the vicinity of the Display back to the Source devices.
It also provides POE function that you only need to provide a piece of 48V/1ADC power adapter at the end of the Sender to supply the power both the end of the Sender and Receiver.

1.1Features

• Support HDCP
• Support POE
• Support uncompressed HDMI signal.
• Enables HDMI 10.2Gbps over a single 100m Cat5e/6 cable.
• Support 340MHz/3.4Gbps per channel (10.2Gbps all channel) bandwidth.
• Support 1080p@60Hz@48bit pixels
• Support 3D pass-through.
• Support CEC pass-through.
• Support uncompressed audio such as LPCM.
• Support compressed audio such as DTS Digital, Dolby Digital（including DTS-HD and Dolby  True HD）.
• Built-in IR extender function allows IR remote control of Source devices from remote viewing location by sending IR commands received in the vicinity of the Display back to the Source devices.
• CAT5e/6 cable follows the standard of IEEE-568B.

2.0 SPECIFICATIONS

3.0 Package Contents


Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:


1. Main unit NO. 1 Sender
2. Main unit NO. 2 Receiver
3. One piece of 48V DC Power Supply.
4. IR(Extender infrared receiver) X1
5. IE(Extender infrared emitter) X1
6. User’s Manual
