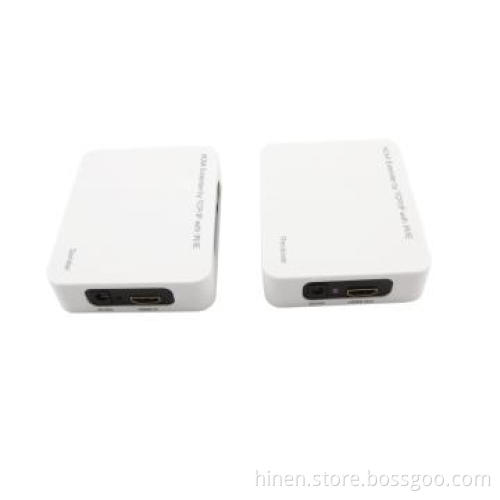

HDMI Extender by TCP/IP with IR/IE 100m

HDMI Extender by TCP/IP with IR/IE 100m
HERIP01

Description:
 The HDMI Extender by TCP/IP with IR/IE is based on TCP/IP standard. It extends your HD display with the resolutions of 1080p/60Hz up to 330 feet (100 meters) away from your HDMI or DVI-D source by using one CAT5e/6 cable.
Meanwhile,this product supports the Command forwarding function of infrared remote control (IR forwarding function). Through the infrared remote control, you can control your BD player or Set top box (STB) easily. Also, It supports one to many video and audio transmission function that a sender of this product can support multiple Receivers.

Features:

• M-JPEG encode/decode video up to 1080p.
• Supports the command forwarding function of infrared remote control (IR forwarding function).
• Following TCP/IP standard.
• Supports resolution up to 480p/720p/1080i/1080p.
• Supports max video bandwidth to 1.65Gbps/165MHz.
• CAT5e/6 cable follows the standard of IEEE-568B.
• supports one to many video and audio transmission function that a sender of this product can support multiple Receivers.


Note: Only when Sender and Receiver are directly connected through the LAN Cable , the IR forwarding function can be used. If sender and Receiver establish data link through a network switch or a router, the IR forwarding function will not  be used.

Specifications

Signal Inputs/Output
Input Connector	1x HDMI Female port
Output Connector	1xEthernet Female port  1x 2.5mm IE Jack
Mechanical
Size(L-W-H)	100×85×25MM
Weight (Net)	105g
Warranty
Limited Warranty	1 Year Parts and Labor
Environmental
Operating Temperature	0 ℃ to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃ to +80℃
Storage Humidity	5% to 90 % RH (no condensation)
Power Requirement
External Power Supply	5V DC@ 2A
Power consumption (Max)	3.5W
Regulatory Approvals
Converter Unit	FCC,CE,UL
Power Supply	UL,CE,FCC
