HDMI Super Extender (By CAT-5e/6 cable) 60meters for 1080p
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Interlaced(50&60Hz) | 480i,576i,1080i |
|---|---|
| Progressive(50&60Hz) | 480p,576p,720p,1080p |
| HDMI Input/Output Connector | Type A 19 pin |
| Vertical Frequency Range | 50/60Hz |
| Weight(Net) | 0.246KGs |
| Signal Type | Analog signal |
Detail Description

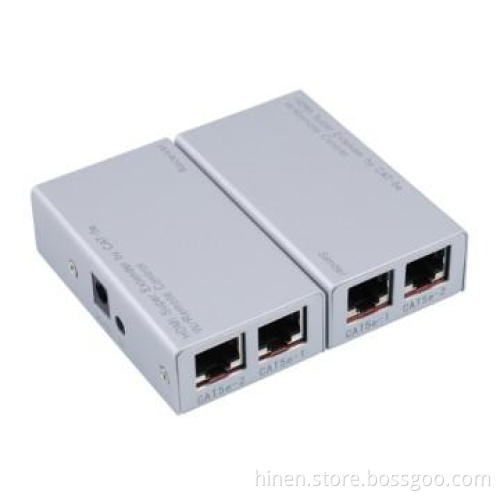

HDMI SUPER EXTENDER (By CAT-5e/6 cable)
1.0 Introduction
The HDMI Extender by CAT-5e/6 uses two pieces of UTP cable with cross stand inside to extend the HDTV display up to 60 meters for 1080p. It not only breaks the limitation of the HDMI cable transmission length，but also CAT-5e/6 has more flexibility and convenience in cable construction.
Using this extender, you can use the source devices\' remote control to have a long-distance control the source devices at the end of sink devices.
It is equipped with HDMI (high definition multimedia interface) connectors and is capable of supporting DVI (digital visual interface) equipment when used with an HDMI to DVI Adapter, providing greater flexibility and options when integrating several home theater components.
It offers solutions for residential consumers: HDTV retail and show site, HDTV, STB, DVD and Projector factories, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
1.1 Benefits
1) The length of HDMI cable is fixed and unchangeable after it is produced. Because the HDMI connector can only be soldered or terminated by the professional workers in factory, the users can not reduce or increase by themselves. However CAT-5e/6 cables are available everywhere and be processed easily by the user or installer.
2) Because the header of the long HDMI cable is big, using it must in hidden method. What\'s more, it is not easy to bend the HDMI cable and to pull it through the in-wall tube or tray. However, CAT-5e/6 cable has no such problems.
3) Using this Extender together with UTP cable with cross stand inside, the transmission distance can be up to 60 meters for 1080p. For the general HDMI cables, they must be customized when the length is over 10 meters.
This HDMI Extender has many features that enable it to perform in a superior manner. Among those features you will find:
l One pair as a full functional module, no need of setting.
l CAT-5e/6 cable can substitute HDMI cable to achieve long distance transmission.
l Follows the standard of IEEE-568B.
l Transmission distance can be up to 60 meters for 1080p using UTP cable with cross stand inside.
l Auto-adjustment of feedback, equalization and amplify, the user does not need to care about the length of the cable.
l Compact size.
l With an infrared emission at the end of Sender; with an infrared receiver at the end of Receiver.
l Supports highest video resolution 1080p.
l Supports 165MHz/1.65Gbps per channel (4.95Gbps all channel) bandwidth.
l Supports 8bit per channel (24bit all channel) deep color.
l Supports HDCP.
l Supports uncompressed audio such as LPCM
l Supports compressed audio such as DTS Digital, Dolby Digital（including DTS-HD and Dolby True HD）
Support 3D all format, including 1080p@23.98/24Hz, 720p@59.94/60Hz/50Hz, bandwidth up to 165MHz
1.0 Introduction
The HDMI Extender by CAT-5e/6 uses two pieces of UTP cable with cross stand inside to extend the HDTV display up to 60 meters for 1080p. It not only breaks the limitation of the HDMI cable transmission length，but also CAT-5e/6 has more flexibility and convenience in cable construction.
Using this extender, you can use the source devices\' remote control to have a long-distance control the source devices at the end of sink devices.
It is equipped with HDMI (high definition multimedia interface) connectors and is capable of supporting DVI (digital visual interface) equipment when used with an HDMI to DVI Adapter, providing greater flexibility and options when integrating several home theater components.
It offers solutions for residential consumers: HDTV retail and show site, HDTV, STB, DVD and Projector factories, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
1.1 Benefits
1) The length of HDMI cable is fixed and unchangeable after it is produced. Because the HDMI connector can only be soldered or terminated by the professional workers in factory, the users can not reduce or increase by themselves. However CAT-5e/6 cables are available everywhere and be processed easily by the user or installer.
2) Because the header of the long HDMI cable is big, using it must in hidden method. What\'s more, it is not easy to bend the HDMI cable and to pull it through the in-wall tube or tray. However, CAT-5e/6 cable has no such problems.
3) Using this Extender together with UTP cable with cross stand inside, the transmission distance can be up to 60 meters for 1080p. For the general HDMI cables, they must be customized when the length is over 10 meters.
1.2 Features
This HDMI Extender has many features that enable it to perform in a superior manner. Among those features you will find:
l One pair as a full functional module, no need of setting.
l CAT-5e/6 cable can substitute HDMI cable to achieve long distance transmission.
l Follows the standard of IEEE-568B.
l Transmission distance can be up to 60 meters for 1080p using UTP cable with cross stand inside.
l Auto-adjustment of feedback, equalization and amplify, the user does not need to care about the length of the cable.
l Compact size.
l With an infrared emission at the end of Sender; with an infrared receiver at the end of Receiver.
l Supports highest video resolution 1080p.
l Supports 165MHz/1.65Gbps per channel (4.95Gbps all channel) bandwidth.
l Supports 8bit per channel (24bit all channel) deep color.
l Supports HDCP.
l Supports uncompressed audio such as LPCM
l Supports compressed audio such as DTS Digital, Dolby Digital（including DTS-HD and Dolby True HD）
Support 3D all format, including 1080p@23.98/24Hz, 720p@59.94/60Hz/50Hz, bandwidth up to 165MHz
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 100 |
| Lead Time / Delivery Time | 30 Day(s) |
| Sample Available | YES |
| Delivery Details | Negotiable |
| FOB Port | Shenzhen |
| Loading Info | FOB Shenzhen |
| Packing Info | cartons |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
