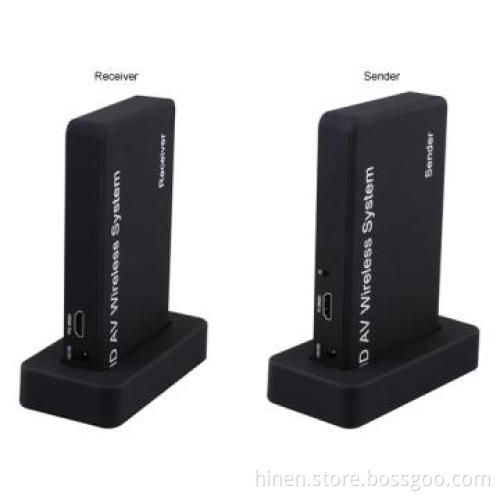

HD AV Wireless System wireless extender

1.  Brief Introduction

    Thank you for choosing our devices of the HD(high-definition) AV(audio/video) wireless system. The device can be wirelessly connected from an HD source device to an HD display device at home. With the device, you can enjoy HD video anywhere at home. In addition, you are relieved from the layout of cables and installation of a set-top-box and thereby reduce relevant expenses.
.

2.  PRODUCT Features

• Easy to Use: Install in seconds, no need of setting.
• Transmission range in the vacancy indoor environment 30m.
• Supporting the video HDMI interface at the maximum of 1920x1080P@60 Hz@36bit,225MHz bandwidth.
• Supporting HDCP1.2 protocol.
• Supporting the EDID function.
• Supporting the CEC function (for the receiving and display devices).
• Supporting the IR extension transmission function.
• Transmission power 12 dBm.
• Supporting the AES128-bit image encryption Function.
• Supporting the reverse back-transmission channel at the maximum rate of 100 kbs.
• Supporting WHDI 1.0 specification.



3.  TECHNICAL SPECIFICATIONS



Video formats supported	TV:1080p,1080i,720p,576p,480p PC:VGA(640×480),SVGA(800×600),  XGA(1024×768),SXGA(1280×1024)
Audio formats supported	PCM,DTS,DOCBY DIGITAL
RF communication system	MIMO
Modulation mode	OFDM
Maximum transmission power	12dBm
Image transmission distance	Whole home range and penetrates through 2-3 concrete walls:30m
Image delay	<1 ms
Transmission/receiving antenna mode	Built-in
Operating frequency	5.1~5.9GHz(with DFS function)
IR carrier modulation frequency supported	38KHz
Operating power supply	5V/3A DC power
Storage temperature	-20~80℃
Operating temperature	-10~50℃

Note: The working frequency band may vary with the relevant laws in different countries or regions.
