1X8HDMI Extender by TCP/IP with sender and receiver

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Input/Output port of sender	HDMI Female x 1 / RJ45 Female x 8
Input/Output port of receiver	RJ45 Female x 1 /HDMI Female x 1
Vertical Frequency Range	50/60Hz
Video Amplifier Bandwidth	Max up to 1.65Gbps/165MHz
Interlaced(50&60Hz)	480i,576i, 1080i for HDMI
Signal Type	Figure signal

Detail Description

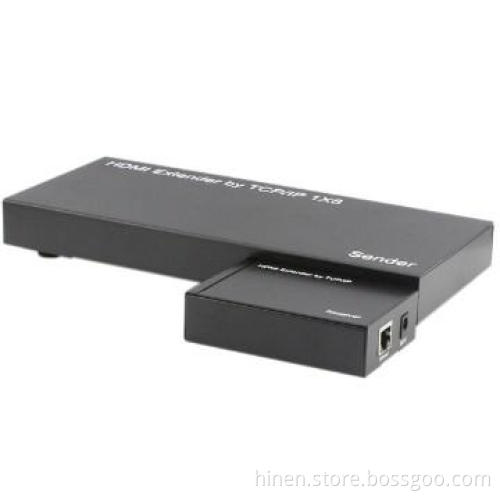

1X8HDMI Extender by TCP/IP with sender and receiver
Introduction

HDMI Extender by TCP/IP is based on TCP/IP standard. It extends your HD display with the resolutions of 1080p/60Hz up to 330 feet (100 meters) away from your HDMI or DVI-D source by using one CAT5e/6 cable.

Features

M-JPEG encode/decode video up to 1080p.
Following TCP/IP standard.
Supports resolution up to 480p/720p/1080i/1080p.
Supports max video bandwidth to 1.65Gbps/165MHz.
CAT5e/6 cable follows the standard of IEEE-568B.
Supports one to many videos and audios transmission function that a Sender of this product can support multiple Receivers.
Supports one to eight or one to many function

SPECIFICATIONS

Signal Input/Output
Input/Output port of sender	HDMI Female x 1 RJ45 Female x 8
Input/Output port of receiver	RJ45 Female x 1 HDMI Female x 1
Operating Frequency
Vertical Frequency Range	50/60Hz
Video Amplifier Bandwidth	Max up to 1.65Gbps/165MHz
Resolutions(HDTV)
Interlaced(50&60Hz)	480i,576i, 1080i for HDMI
Progressive(50&60Hz)	480p,576p,720p,1080p for HDMI;
Mechanical
Size (W-H-D)	Sender 258×112×26mm Receiver 65×100×26mm
Weight (Net)	Sender 0.716Kg Receiver 197g
Warranty
Limited Warranty	1 Year
Environmental
Operating Temperature	0 ℃ to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃ to +80℃
Storage Humidity	5% to 90 % RH (no condensation)
Power Requirement
External Power Supply	DC 5V@2A X9
Power consumption (Max)	Sender:2.5W Receiver:2.5W
Accessories Adapter
User Manual	English Version

Additional Information

Payment Terms	T/T
Minimum Order	100
Lead Time / Delivery Time	30 Day(s)
Sample Available	YES
Delivery Details	FOB
FOB Port	Hong Kong,Shenzhen
Loading Info	NEGOTIABLE
Packing Info	CARTON
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
