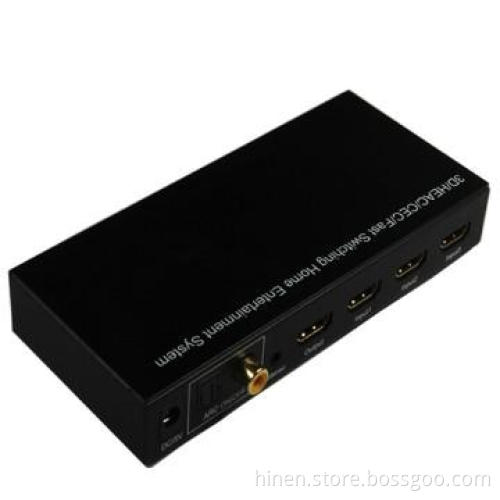

3D/ HEAC/ CEC/ Fast Switching Home Entertainment System 3D Switcher

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

color	black
Resolution Rratio	1080p
Application	HDTV

Detail Description

3D/ HEAC/ CEC/ Fast Switching Home Entertainment System

DEAR CUSTOMER

Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.

1.0 Introduction

It is a Home Entertainment System with very powerful functions. It supports 4 HDMI inputs and 1 HDMI output. With Built-in HDCP engine for Instant Port Switching (IPS), 4 Ports switching can be very fast because there is no need to redo HDCP authentication when port switching occurs. With the built-in HEC (HDMI Ethernet) and ARC (Audio Return Channel) chips, it can split HEC which is from HDTV to Ethernet signals and can split ARC which is also from HDTV to Coaxial, Toslink, Stereo audio signals that are also from source device through ARC ON/OFF button on the Remote Control.

1.1 Features

l HDMI(with HEAC, 3D, CEC)
l Supports 4 HDMI inputs and 1 HDMI output.
l Built-in HDCP engine for Instant Port Switching (IPS), 4 Ports switching can be very fast because there is no need to redo HDCP authentication when port switching occurs.
l Supports Audio Return Channel (ARC) from sink device. Connects ARC port to Amplifier Receiver.
l Supports digital audio Toslink and COAX output simultaneously and Stereo audio output from source device. Connects these ports to Amplifier Receiver.
l Supports 3D all format, including 1080p@23.98/24Hz, 720p@59.94/60Hz/50Hz, bandwidth up to 225MHz.
l Supports CEC.
l Supports highest video resolution 1080p.
l Supports 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth.
l Supports 12bit per channel (36bit all channel) deep color.
l Supports uncompressed audio such as LPCM.
l Supports compressed audio such as DTS Digital, Dolby Digital（including DTS-HD and Dolby True HD）.

2.0 SPECIFICATIONS

Signal Inputs/Output
Input DDC Signal	5 volts p-p (TTL)
Input and Output Signal	HDMI(with HEAC,3D)
Output Audio Signal	Toslink, Coaxial, Stereo
Operating Frequency
Vertical Frequency Range	50/60Hz
Video Amplifier Bandwidth	2.25Gbps/225MHz
Resolutions(HDTV)
Interlaced(50&60Hz)	480i,576i,1080i
Progressive(50&60Hz)	480p,576p,720p,1080p
Mechanical
Size(L-W-H)	157mm x 70mm x 23mm
Weight(Net)	260g
Warranty
Limited Warranty	1 Year Parts and Labor
Environmental
Operating Temperature	0℃ to +70℃
Operating Humidity	10% to 80 % RH (no condensation)
Storage Temperature	-10℃ to +80℃
Storage Humidity	5% to 90 % RH (no condensation)
Power Requirement
External Power Supply	5V DC @2A
Power Consumption (max)	5 W
Regulatory Approvals
Converter Unit	FCC,CE,UL
Power Supply	UL,CE,FCC
Accessories Adapter
AC Power Adapter	US standard, UK standard and so on
User Manual

Note: Specifications are subject to change without notice. Weight and dimensions are approximate.

3.0 Package Contents

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1)    Main unit.
2)    5V/2A DC Power Supply x1.
3)    User’s Manual.
4)    Remote Control x1

Additional Information

Payment Terms	T/T, Others
Minimum Order	100
Lead Time / Delivery Time	9 Day(s)
Sample Available	YES
Delivery Details	negotiable
FOB Port	Hong Kong,Shenzhen
Loading Info	shippment airfreight
Packing Info	negotiable
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
