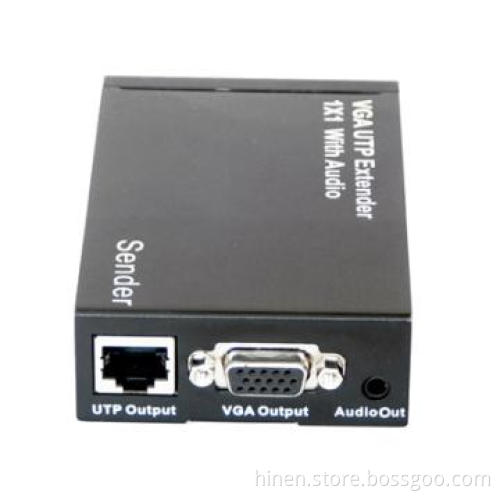

VGA UTP Extender 1X1 Splitter with Audio

VGA UTP Extender 1X1 Splitter with Audio


Dear Customer

Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.


1.0 Introduction

This VGA UTP Extender 1X1 Splitter with Audio is an ideal device for local displaying and remote viewing. It combines split function and extension function. It distributes the input of the VGA signal and audio signal into the local and remote outputs simultaneously. Receiver by Cat5 x1 works with the Sender as a full functional module by receiving the distributed signal from the sender and transmitting to display. Only by the most inexpensive UTP cable with cross stand inside, the full functional module extend the VGA display max up to 300 meters.

It offers solutions for VGA retail and show site and Projector factory, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.


1.1 Features

This device has many features that enable it to perform in a superior manner. Among those features you will find:

• Extend VGA video and stereo audio signal max up to 300m over one UTP cable with cross stand inside
• Adjusting GAIN and PEAK to adapt for the different length of UTP cable.

GAIN: Brightness adjustment.
PEAK: Skew adjustment.

• Supports resolution max up to 1920x1200.
• Dual output at local unit: 1 x VGA output for local site, plus 1 x UTP output for remote site.
• Work with monitors projectors, HDTV, and flat panels.
