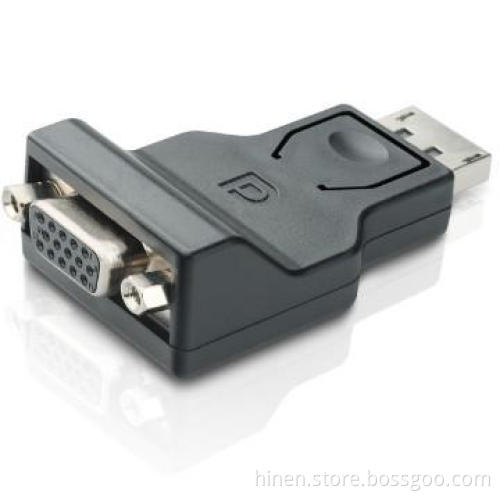

DP to VGA connector DisplayPort to VGA Converter

DP to VGA connector DisplayPort to VGA Converter
Introduction
This is a DisplayPort to VGA signal format converter for interfacing next generation DisplayPort based PC and notebook computers with conventional VGA displays, such as CRT, LCD monitors, and projectors. DisplayPort offers a unified, scalable, and cost effective interface for embedded and external display applications. As desktop and notebook PCs are increasingly transitioning from conventional analog type interfaces to DisplayPort, the converter facilitates the transition by offering seamless connectivity between new DisplayPort PC and notebooks and the installed base VGA monitors and projectors.
It offers solutions for digital entertainment center, projector factory, noisy space and security concerns, conference room presentation, school and corporate training environments.

FEATURES
This DisplayPort to VGA converter has many features that enable it to perform in a superior manner. Among those features you will find:
1、DisplayPort 1.1a compliant receiver offering 5.4 Gbps bandwidth over 2 lanes
2、Integrated triple 10-bit, 162 MHz video DAC for analog VGA signal output
3、Supports up to 1080p, 1920 x 1200 reduced blanking video resolution
4、EDID pass-through from PC source to display
5、Spread Spectrum (de-spreading) for EMI reduction
6、Automatic sink detection
7、Low power standby mode operation initiated based on sink detection status
8、Powered from DisplayPort source
9、3.3V IO, 1.2V Core
10、Low power operation – Active 400mW, standby mode 15mW

Note: For few display cards, the image would not appear until the PC enters into Windows from DOS at the time of restarting.

SPECIFICATIONS

Signal Inputs/Output
Maximum Single Link Range	1920X1200, 1080P
Video format supported
VGA	Max to1920x1200
Operating Frequency
Vertical Frequency Range	50/60Hz
Video Amplifier Bandwidth	162MHz
Mechanical
Size(L×W×H)	68X35X19.5MM
Weight(Net)	22g
Warranty
Limited Warranty	1 Year Parts and Labor
Environmental
Operating Temperature	0 ℃ to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃ to +80℃
Storage Humidity	5% to 90 % RH (no condensation)
Power Requirement	No
Accessories Adapter
