Transmitted based on LAN Gigabit Networking to HDMI Adapter

Transmitted based on LAN Gigabit Networking to HDMI Adapter

1. Introduction

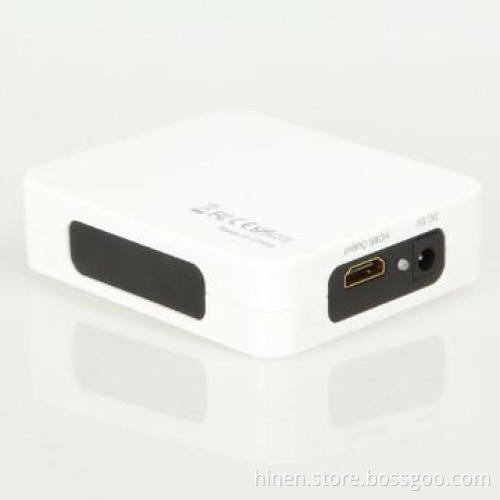

This is a Gigabit Networking to HDMI Adapter. It is transmitted based on LAN. In this LAN segment all PCs which are connected to Ethernet Router or Hub can share a HDTV or projector and you can watch video and audio of every PC on this large display. Also multiple Adapters can beconnected to Ethernet Router or Hub, so you can transmit the PC’s content to multiple displays.

2. Features

• SupportsTCP/IP protocols.
• Supports 10/100/1000Mbps Network Interface.
• Supports 100m Cat5e/6 cable.
• Supports HDMI 1080p/60Hz/24bit/165MHz bandwidth.
• Support OS:Windows 7, Windows Vista, Windows XP.

3.  Specifications

Signal Inputs/Output
Input port	1XRJ45
Output port	1xHDMI Female
Operating Frequency
Vertical Frequency Range	50/60Hz
Video Amplifier Bandwidth	Max to1.65Gbps/165MHz
Mechanical
Size(L-W-H)	102x84x26mm
Weight(Net)	105g
Warranty
Limited Warranty	1 Year Parts and Labor
Environmental
Operating Temperature	0 ℃to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃to +80℃
Storage Humidity	5% to 90 % RH (no condensation)
Power Requirement
External Power Supply	5V/2A
Power consumption (Max)	5W
Regulatory Approvals
Converter Unit	FCC,CE,UL
Power Supply	UL,CE,FCC
Accessories Adapter
User Manual	English Version

Note: Specifications are subject to change without notice.
