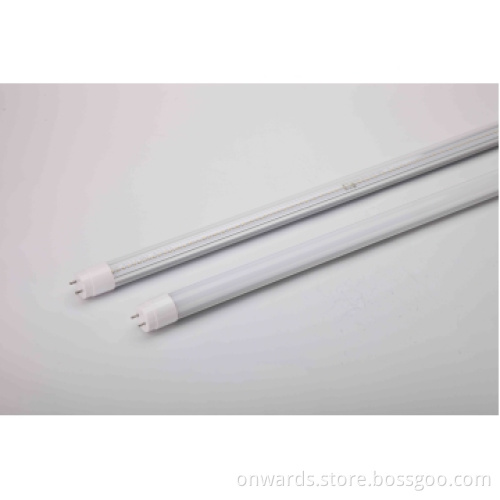

New 2feet T8 LED Tube Lighiting with CE

LED tube

CCT:        2700-3000K 4000-4500K 6000-6500K

Luminous flux:   700~750lm

Application:Indoor Use

Life span:>40,000 hours

Materials Base:  Aluminum Alloy  Cover: frosted PC

Dimension:     G13  Φ26x594mm(SPEC in Japan & Taiwan)

Weight:    190g/pcs  (power inside)

Input Voltage:AC100V~240V  50/60Hz

Power:     9W±10% (power inside)

Power Factor:      >0.85

Operating Temperature:      -20℃~40℃

Light source:      SMD LED 3014  102PCS

Beam angle:≧180°

Warranty:Two years


Features:
PSE,CE,RoHS approved;
2 Years warranty;
No mercury; No Flicker; UV resist.

Installation instructions
1.Firstly please turn off the power before install the led tube.
2.Take off the traditional fluorescent tube. Cut off or directly Take off the starter and ballast from the traditional below wiring diagram to connect the LED tube on the traditional fluorescent tube fixture.
3.According fixture.
4.Make sure everythings are correctly, and than turn on the power, the led tube will light.

Application:
Office,Supermarket, Workshop, School, Hospital, Lobby, Hall, Square, Parking and so on.


Warnings:

1. Take out from package carefully;
2. Check if have any damage, don\'t try to use any damaged products;
3. Read the label parameter carefully before installation and make sure the voltage & current are correct;
4. Indoor use only;
5. Don\'t vibrate tube
6. Don\'t disassemble the tube if have no authorization;
