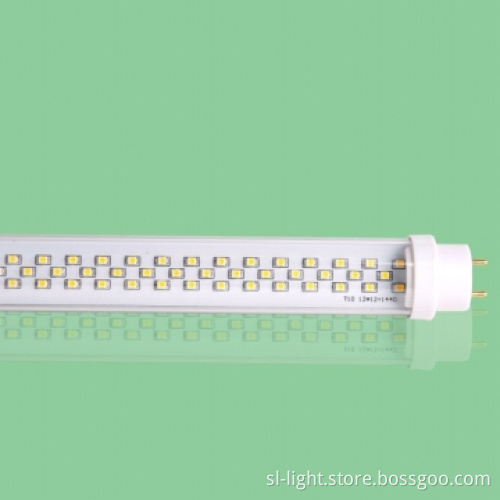

Design for Japan Market with PSE 144SMD T10 LED Tubes
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Life | 50000hours |
|---|---|
| Package | Yes |
| Length | 60cm |
| Color Tones | Cool Color |
| Illuminant | SMD |
| Light Source Chip | CREE |
| Voltage | 220V |
| Power | 10W |
Detail Description
LED Tube Specifications:
Item No. |
Color |
Power(W) |
Voltage(V) |
LED Qty |
Color Temp.(K) |
Luminous Flux(LM) |
Dimension(mm) |
SL-T10/0.6-LDT144V10 |
Day white |
10±0.5 |
AC100-265V |
144 |
5000-7000 |
750±10% |
￠30x600 |
SL-T10/0.6-LNT144V10 |
Nature white |
10±0.5 |
AC100-265V |
144 |
3500-5000 |
700±10% |
￠30x600 |
SL-T10/0.6-LWT144V10 |
Warm white |
10±0.5 |
AC100-265V |
144 |
2700-3500 |
600±10% |
￠30x600 |
SL-T10/0.6-LDT168V12 |
Day white |
12±0.5 |
AC100-265V |
168 |
5000-7000 |
900±10% |
￠30*600 |
SL-T10/0.6-LNT168V12 |
Nature white |
12±0.5 |
AC100-265V |
168 |
3500-5000 |
850±10% |
￠30*600 |
SL-T10/0.6-LWT168V12 |
Warm white |
12±0.5 |
AC100-265V |
168 |
2700-3500 |
750±10% |
￠30*600 |
Features(T10 LED Tubes):
1.Appearance:Aluminum frame and PC cover,lamp holder+/- 90°adjustable.
2.Light Source:High bright SMD LED,the luminous efficiency up to 80-95LM/W
3.Driver:Internal isolated driver,input voltage AX85-265C,PF≥0.95,high efficiency≥
%,CE certification.
4.Dimmable:Internal isolated dimmable driver,most Triac dimmers available,stable dimming,no flickering,no high-frequency noise,dimming range 1%-100%.
5.Installation:Direct replacement fluorescent tubes without starter and ballast.
6.Special note:Design for Japan market,length:580mm.
Our Factory:
Additional Information
| Payment Terms | T/T, Others |
|---|---|
| Minimum Order | 1 |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| FOB Port | Shenzhen |
| Packing Info | Standard package for safe ocean transportation |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
