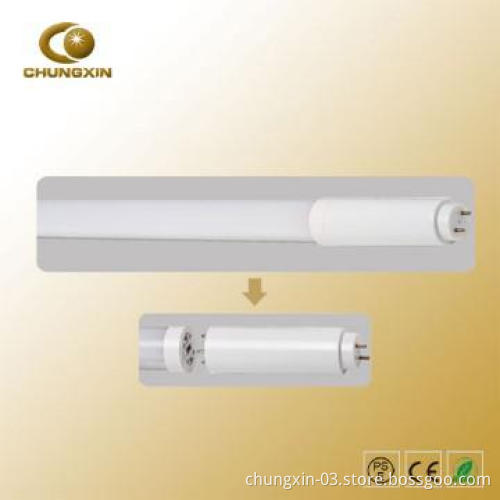

Design for Japan Market with PSE 108SMD T10 LED Tubes
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Lumen | 900lm |
|---|---|
| size | 600*30mm |
| Certification | CE,ROHS,PSE |
| Led Quantity | 108pcs |
| Warrranty | 3 years |
| Life | 50000 |
| Package | Yes |
| Tube Diameter | T8 |
| Color Tones | Warm Color |
| Lamp Base | G13 |
| Length | 60cm |
| Power | 18w |
| Illuminant | SMD |
| Voltage | 110-220V |
| Light Source Chip | CREE |
Detail Description
Design for Japan Market with PSE 108SMD T10 LED Tubes
Aluminum heat sink, No UV, IR or RF interference, Patented heat sink and optical diffuser, longer life than incandescent & fluorescent tube. No ballast required, universal voltage and constant current design, solid state, high shock & vibration resistant, Mercury free, 70%+savings in energy consumption, quiet, no noise, no flickering.The products are in accordance with CE, RoHS, UL and FCC testing standards.
| Material:Aluminum + PC cover | LED quantity:324pcs SMD3528 |
Light transmissivity: ≥92% |
Lifespan:≥50000H |
Rated Power: 25W |
Viewing angle:140° |
| Power consumption:26W±1W | luminous:2000±100Lm |
Input Voltage:AC100V~240V |
Efficiency:88% |
Frequency:50/60Hz |
CRI:>75Ra |
Power Factor:0.96+0.03 |
CTT:3000K/4000K/5000K/6000K |
Working temp:-20°C~45°C |
Size:1198mm (L)×Ф30mm |
Package |
N.W: 0.490kgs G.W.: 0.510kgs |
Carton size: |
1547*205*170mm Pcs/ctn: 20pcs/ctn Total G.W.:14.8kgs/ctn 20FCL: 10000pcs |
Product Features:
1. Low Lumen Depreciation.
2. Installed directly with inductive ballast.
3. Life: about 50.000 hours.
4. Save more than 70% energy.
5. Brighter than traditional fluorescent lamps.
Electrical Parameters:
Input Voltage: 85-265VAC
Frequency; 50-60Hz
Power Supply Efficiency: 90%
Power factor: 0.95
Optical Parameters:
Color-Rendering Index: 75-80
Light Efficiency: 100Lm/w
Color Temperature: 2700-3500K/4000-4500K/5500-6500K
Other Parameters:
Product Patents: Yes
Operating Temperature : -20---50oC
Appearance: Frosted/Striped/Transparent
Main Material: Aluminum inner pipe + PC Cover
IP Rating: IP54
Life Span: 50,000 hours
Certificates:
CE(LVD), CE(EMC), ROHS, FCC,PSE,TUV
Applications:
Houses, offices, exhibitions, meeting rooms, hotels, restaurants, schools, factories, hospitals, workshops, storages, roads, streets, etc.
Caution:
>LED tube and its all fittings cannot withstand any mechanical pressure.
>Any question about the installation of our LED tubes, please ask for professional guide.
>If the aluminum pipe is damaged or deformed, please stop using the LED tube to avoid dangers.
>Before installation, please switch off the electricity, and ensure to install our led tube normally.
>Please install or place the LED tubes to avoid sunlight and high temperature.
>It is only used indoors.
Remarks:
>Detecting distance: 5m to 8m , Lighting time: 30s to 60s
>MOQ:100PCS , LED Chips:3014 or 3528 is Ok.
>Delivery Day: 7 -15days (Based on quantity)
>Price Term: Exw Shenzhen(Over 500pcs, FOB Shenzhen)
>Payment:T/T or West Union,T/T advanced.50% Deposit, Balance Before shipment
>Warranty: 3 Years
>Packing: white box packing, or complying to your details requirements.
Other Lamp Holer Is Ok:
Additional Information
| Payment Terms | T/T, Others |
|---|---|
| Minimum Order | 10PCS |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | FOB/CIF. 5-10 working days after receipt of deposit. |
| FOB Port | Shenzhen |
| Loading Info | By sea, by air |
| Packing Info | 20pcs t8 / t10 led tubes in a carton |
| Target Market(s) | Africa(except Middle East), Japan & Korea, Latin America, Oceania, Central & Southern Asia, Western & Southern Europe |
