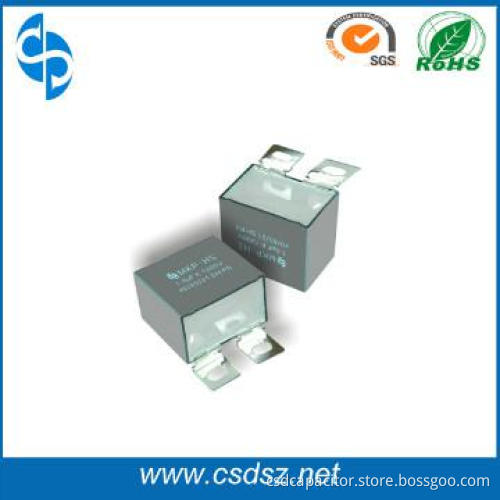

2013 CSD MKP-HS Snubber Capacitor,UPS Capacitor

                 2013 Shenzhen CSD MKP-HS
   IGBT Snubber Capacitor,UPS Capacitor

Specifications of Snubber Capacitor  and UPS Capacitor  :

1. Reference Standards: IEC 61071  GB/T 17702

2. Climatic Category: 40/85/21

3. Capacitance Range: 0.047μF~9.0μF

4. Capacitance Tolerance: +-5 %( J), +-10 %( K)

5. Rated Voltage: 700V~3000VDC

6. Rate Temperature:-40~ 85°C

7. Operating Temperature Range: -40~85°C

8. Dissipation Factor: tg≤0.0005 Cn≤1.0μF  (at 10KHz)

                                         tg≤0.0010   Cn>1.0μF (at 10KHz)

9. Voltage Proof: 1.5*Un dc/10S

10. Insulation Resistance:  Cn≤0.33 μF      RS ≥15000MΩ   ( at 20 °C 100V.DC)

                                                   Cn>  0.33 μF    RS ≥5000S         ( at 20 °C 100V.DC)

Features  of Snubber Capacitor  and UPS Capacitor  :
1.Low loss and small inherent temoeature rise.

2.Withstand high ripple current
3.High DV/DT,absorb high frequency ripple.
4.Excellent active and passive flame resistant circuit.

Applications of Snubber Capacitor  and UPS Capacitor  :

1.Used for high frequency switching power supply filter,absorption, in every other straight, resonant circuit

2.Widely applied to EMI, such as high frequency welding inverter, UPS, electric vehicles,etc.

Term of Payment:          L/C,T/T,Western Union,PAYPAL

Term of Delivery:           EXW & FOB-HK & Port City of Mainland of China.

 Packaging:                    ROHS Carton(530*350*205)MM
