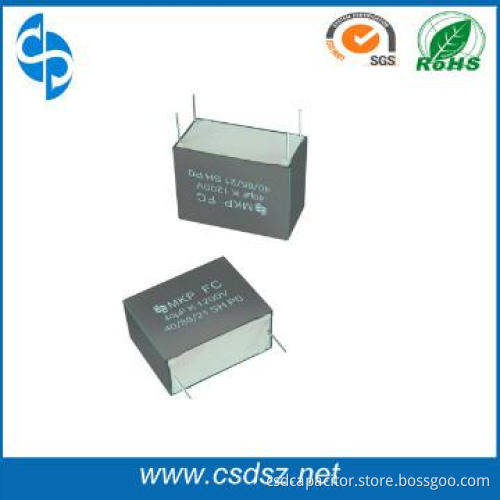

2013 CSD MKP-FC 4PINS Snubber Capacitor,UPS Capacitor

        2013 Shenzhen CSD MKP-FC
  4PINS,IGBT Snubber Capacitor,UPS Capacitor

Specifications of Snubber Capacitor  and UPS Capacitor  :

1. Reference Standards: IEC 61071  GB/T 17702

2. Climatic Category: 40/85/21

3. Capacitance Range: 0.047μF~9.0μF

4. Capacitance Tolerance: +-5 %( J), +-10 %( K)

5. Rated Voltage: 700V~3000VDC

6. Rate Temperature:-40~ 85°C

7. Operating Temperature Range: -40~85°C

8. Dissipation Factor: tg≤0.0005 Cn≤1.0μF  (at 10KHz)

                                         tg≤0.0010   Cn>1.0μF (at 10KHz)

9. Voltage Proof: 1.5*Un dc/10S

10. Insulation Resistance:  Cn≤0.33 μF      RS ≥15000MΩ   ( at 20 °C 100V.DC)

                                                   Cn>  0.33 μF    RS ≥5000S         ( at 20 °C 100V.DC)

Features  of Snubber Capacitor  and UPS Capacitor  :
1.Low loss and small inherent temoeature rise.

2.Withstand high ripple current
3.High DV/DT,absorb high frequency ripple.
4.Excellent active and passive flame resistant circuit.

Applications of Snubber Capacitor  and UPS Capacitor  :

1.Used for high frequency switching power supply filter,absorption, in every other straight, resonant circuit

2.Widely applied to EMI, such as high frequency welding inverter, UPS, electric vehicles,etc.

Term of Payment:          L/C,T/T,Western Union,PAYPAL

Term of Delivery:           EXW & FOB-HK & Port City of Mainland of China.

 Packaging:                    ROHS Carton(530*350*205)MM


FAQ(Frequently Asked Questions)

Q:Are you a manufactuer or trading company?

A:We are a manufactuer specialized in metalized polypropylene film capacitor and polyesterfilm capacitor since 1986.


Q:How is your product quality?

A:We have the guarantee from the material,even every procedure,all our products are as good as the samples that send you free for testing.

Q:Can you make sure all of the products consistent?

A:Yes,we have passed the ISO9000 certification,all products will be as good as the samples.

Why choose Shenzhen Chuangshuoda Electronics Co.,Ltd ?

 Professional:Since 1986 specailzed in metalized polypropylene film capacitor and polyester film capacitor

Honor: 8 years old export experience; UL,VDE,ENEC,CQC,CB Certification.

How to order  :

In order to help you get the exact type, please offer the following necessary info.:

1. capacitance value:____ ( UF or such as 104/224/334..475)

2. capacitance tolerance: ±5%(J), ± 10%(K), ± 20%(M)

3. size limited, such as Width(Length)*Height*Thinkness,Pitch (mm) Such as : W18*H12*T6,P=15(±1mm)

4.Lead style :___________ _(straight or crimped taping)

5.Package Type: Bulk or Tape

6.Used for what\'s products? How about the input voltage, the working tempreture & the function of the capacitor in the circuit

Our service:
1.Your enquiry related to our products or prices will be replied in 24 hours
2.Well trained and experienced staffs to answer all your questions in fluent English
3.Can do for you some technical guidance
4.High quality&competive price

Attention :
1.Product specific size can be customized according to our customers\'s demand,and we \'ll try our best to meet your requirements and design for your products.
2.When you send enquiry to us,please don\'t forget to let us know your MSN ID or SKYPE ID,so that we can quote the offer at once. We are always on line waiting for you.

DOOG NEWS

Sample can be send free of charge, please feel free to contact me.
