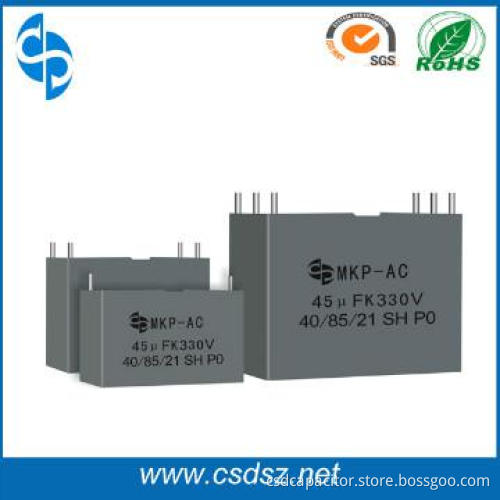

High Pulse Current and Low ESL\'S BOX-TYPE AC Filter Capacitor

High Pulse Current and Low ESL\'s Box-Type
AC Filter Capacitor

 ***CSD MKP-AC Series***

More details of informations, please view our webiste:

https://csdsz.net or e-mail to Candy Liu.

Specifications of  AC Filter Capacitor:

1. Reference Standards: IEC 61071  GB/T 17702

2. Climatic Category: 40/85/21

3. Capacitance Range: 3.0~50 μF

4. Capacitance Tolerance: +-5 %( J), +-10 %( K)

5. Rated Voltage: 200V.AC~450V.AC

6. Operating Temperature Range: -40~85°C

8. Dissipation Factor: tg≤0.0015(at 1.0KHz)

9. Insulation Resistance:  RS * C ≥5000S   ( at 20 °C 100V.DC)

10. Withstand Voltage: 2UnDC/10S

Features of   AC Filter Capacitor:

1. Flame Retardation UL94V-0
( Plastic case,sealed with epoxy resin)

2. Leads with Tinned Copper Wire or CU Wire

3. Small Size, Easy Installtion

4. Low ESL and ESR

5. High Pulse Current

Applications  of   AC Filter Capacitor:

Widely used in Power Electronic Equipment used for the AC Filter.

Term of Payment:   L/C,T/T,Western Union,PAYPAL

Term of Delivery:    EXW & FOB-HK & Port City of Mainland of China.

Package:   ROHS Carton(530*350*205)MM

How to order  :

In order to help you get the exact type, please offer the following necessary info.:
1. Rated Capacitance value and tolerance?____UF?( K=±10)

2. Rated voltage?____V d.c

3. Working Voltage ? ____V d.c or Vac

4. How about the Max current throught the capacitor?___AMP

5. Used for what\'s products ,such as \" Inverter\'?

6. Do you have size( dimension) limited?

FAQ(Frequently Asked Questions)

A:We are a professional manufactuer of film capacitor since 1986(Taiwan).
Q:Are you a manufactuer or trading company?
A:Founded factory in Shenzhen,Guangdong,2001. Our company is located in Guangming (New District) of Shenzhen.

Q:How is your product quality?
A: All of our raw materials are from Germany, Japan, Korean.

Q:Can you make sure all of the products consistent?
A: We are ISO9001 Certificated company. We got the ISO9000 Quality System Certification by SGS Company in 2005.And upgrade to ISO9001-2008 in 2011.

Q:Do you have experienc of export?
A: Yes, we are 7 years of Gold Supplier of Aliaba and 8 years experienc of export.

Q: How about your Technical Advantage?
A: We have an independant product reliability laboratory.According to IEB,GB and other relative standards;we take regularly life test for all products. We had  R & D team up 10 staff which are reseaching and testing on the new materials, new progress, in order to reach the same advanced international technology level, and keep good interaction with customers, disgin and produce the cost-effective products according to customers\' requirements quickly.
