18W,27W,36W,54W LED Panel light,led panel
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Material | Aluminum, PMMA |
|---|---|
| Application | Airport, Bathroom, Bathroom Room, Bedroom, Car Park, Church, Cinema, Gallery, Garage, Hospital, Hotel, Kitchen, Meeting Room, Museum, Office, Restaurant, School, Shopping Mall, Sitting Room |
| Light Source | LED |
Detail Description
We are top 20 LED panel light anufacturer in China, professional in LED panel . Providing unique design super quality Panel
light. All our panel lights have pass CE RoHS FCC approval.

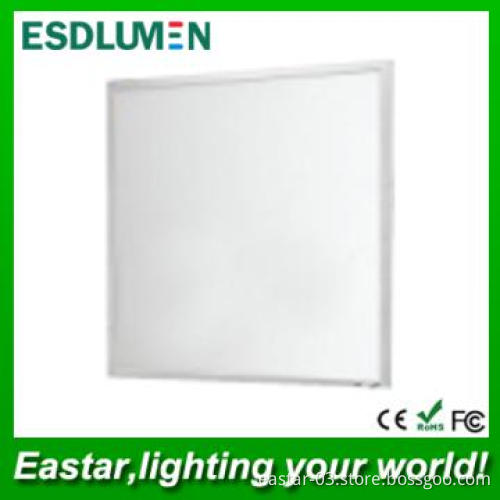

36W LED panel lighting
Specifications
Module
ZMP-CS4-6060-GOP36-A1 (natural white)
ZMP-CS4-6060-GOW36-A1 (warm white)
ZMP-CS4-6060-GOC36--A1 (cold white)
Specifications:
| Total power consumption | 41W |
| LED consumption | 36W |
| Input voltage | AC90-250V, 50/60Hz |
| Power supply | external constant current |
| Lighting source | low power 3528 LEDs |
| LED quantity | 576pcs |
| Lighting method | side emitting |
| Main material | aluminum + PMMA + PC |
| Luminous flux | 2500lm |
| Color temperature | 2700-4500K, 4500-6500 K, 6500-9000K |
| Viewing angle | ≤120 ° |
| CRI | Ra more than 70 |
| Working temperature | -20~45°C(-4~104 °F) |
| Environment humidity | <90 percent |
| Working environment | indoor use (applicable for dry environment) |
| Environment humidity | <90 percent |
| Protection rating | IP44 |
| Life-span | 50,000 hours |
| Weight | 5600g (lamp),6000g (total) |
| Certification | CE, RoHS and UL pending |
| Installation | suspended,mounted |
| Warranty | 2 years |
| Dimension | 600 mm* 600mm*15mm |
Features:
1 No need for starter and ballast, instant soft-start, no speckle, no flickering, no humming, no buzzing, no RF interference2 Even illumination, quiet, soft, comfortable and bright light, ease eye strain effectively.
3 long life-span: 30,000-50,000 hrs
4 Strict quality control, lighting aging for 72 hrs and complete inspection before shipping
Applications:
1.600*600mm 36W LED light panel can be extensively applied to general lighting, such as mall, store, hotel, office, supermarket, commercial building, station, warehouse, residential, parking lot, home, restaurant, railway, subway station, bank, warehouse, exhibition gallery, library, closet, factory, etc. Replace conventional fluorescent lamp or sodium lamp.The 36W LED light panel Energy efficient and environmentally friendly.
2. Eco-friendly green product
3. Reliable quality
2. Eco-friendly green product
3. Reliable quality
36W LED light panel Installation
36W LED pane llights Electrical Connection
1. Before installation 36W LED panel, check whether the power is suitable. The light must work under the right voltage according to the specification.
2 Check and make sure that the ceiling can hold the weight of the36W led panel light.
3Ensure the wire is OK and do not pull it. If the wire is broken, stop the usage.
2 Check and make sure that the ceiling can hold the weight of the36W led panel light.
3Ensure the wire is OK and do not pull it. If the wire is broken, stop the usage.
36W LED panel Test Report
600*600mm 36W LED light panel Dimension
36W LED panel lights Iluminance
Additional Information
| Payment Terms | T/T, L/C, Western Union |
|---|---|
| Minimum Order | 20 |
| Lead Time / Delivery Time | 10 Day(s) |
| Sample Available | YES |
| Delivery Details | Air/Sea/Express |
| FOB Port | Shenzhen |
| Loading Info | Air/Sea/Express |
| Packing Info | exquisite carton,FCCD |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
