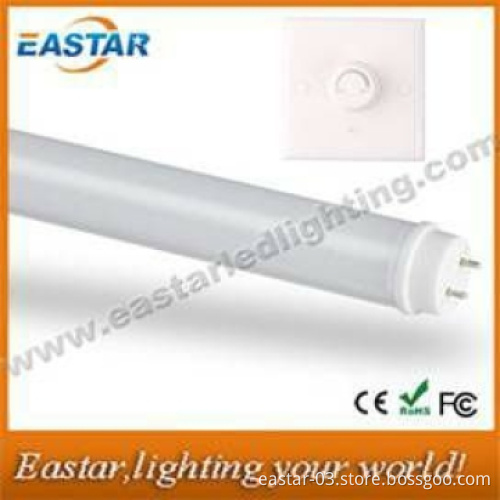

Shenzhen Factory Best Price T8 Dimming LED Tube, with CE, RoHS, FCC, UL
  • Shenzhen Factory Best Price T8 Dimming LED Tube, with CE, RoHS, FCC, UL
Shenzhen Factory Best Price T8 Dimming LED Tube, with CE, RoHS, FCC, UL

Shenzhen Factory Best Price T8 Dimming LED Tube, with CE, RoHS, FCC, UL

Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

Material aluminum PCB and housing & PC cover
Input Voltage AC90-250V, 50/60Hz
Life 50,000 hours
Power 4-14W
Package Yes
Lamp Base E27, E14, E26, GU10
Color Tones Warm Color
Length 60cm
Illuminant LEDs
Light Source Chip CREE
Voltage 220V

Detail Description

Dimming T8 LED Tube Light

Specifications
Module
ESD-ZRG-T8-0600-TDP11 (2FT)
Specifications:
Total power 4-14W
Input voltage AC90-250V, 50/60Hz
Power supply internal constant current
Lighting source low power 3528/3014/5050 LEDs
LED quantity 144pcs
Dimension Φ30mm*590mm
Material aluminum PCB and housing & PC cover
Luminous flux 250-800lm±10%
Luminous efficiency 75–85lm/W
Color temperature 2700-4500K,4500-6000K,6000-9000K
Viewing angle ≤120 °
CRI more than 70
Working temperature -20~40°C(-4~104 °F)
Environment humidity <95 percent
Working environment indoor use
Protection rating IP44
Life-span 50,000 hours
Weight 280g
Certification CE, RoHS and FCC
Warranty 2 years
Features:
1 Triac Rotary switch dimmer with step-less dimming, using high quality silicon controlled rectifier. Exquisite appearance
2 High quality light source. The attenuation of SMD LED light source is less than 3% by 3000hrs aging test under temperature 50 degrees celsius, high luminous efficiency of single LED.
3 Advanced constant current driver with short circuit protection, open circuit protection, overload protection, etc.
4 Superior raw materials. Made of high quality aluminum material, which helps to the heat dissipation and turn on delicate appearance
5 Professional thermal management. Adopts aluminum substrate tightly connected with aluminum housing by insulated glue and greatly reduce the heat dissipation
Applications:
T8 LED tube can be extensively applied to general lighting, such as mall, store, hotel, office, supermarket, commercial building, station, bus, warehouse, signage, residential, parking lot, home, restaurant , train, railway, subway station, bank, warehouse, exhibition gallery, library, closet, factory, cabinet, cupboard, kitchen, refrigeration units etc. Replace conventional fluorescent lamp or sodium lamp. Energy efficient, environmentally friendly
Dimming T8 LED Tube Dimension
Dimming T8 LED Tube Eelectric Connection Diagram
600mm Dimming T8 LED Tube Light Installation
1 Before installation, check whether the power is suitable. The tube must work under the right voltage according to the specification.
2 Cut off the power first for safety
3 Don’t take the tube apart
4 Recommend indoor use
5 Please use it in a ventilation environment and keep it from water.
6 DO NOT connect power (positive & negative) to the two pins at one end only. If they are connected together (positive/negative), you will create a short circuit!
600mm Dimming T8 LED Tube Test Report
600mm Dimming T8 LED Tube Spectrum Test Report
600mm Dimming T8 LED Tube Installation

Additional Information

Payment Terms L/C, T/T, Others
Minimum Order 50
Lead Time / Delivery Time 10 Day(s)
Sample Available YES
Delivery Details Air/Sea/Express
FOB Port Shenzhen
Loading Info Air/Sea/Express
Packing Info exquisite carton,FCCD
Target Market(s) North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
